Product Overview

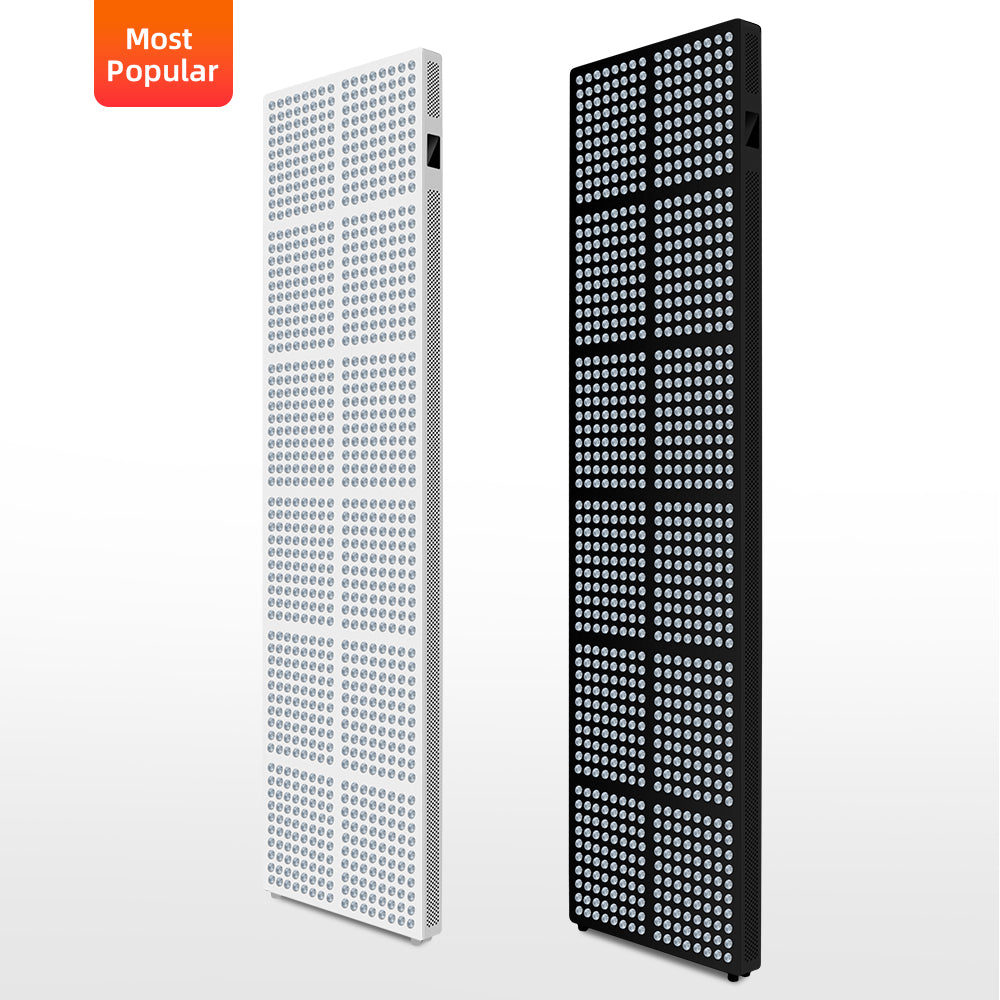

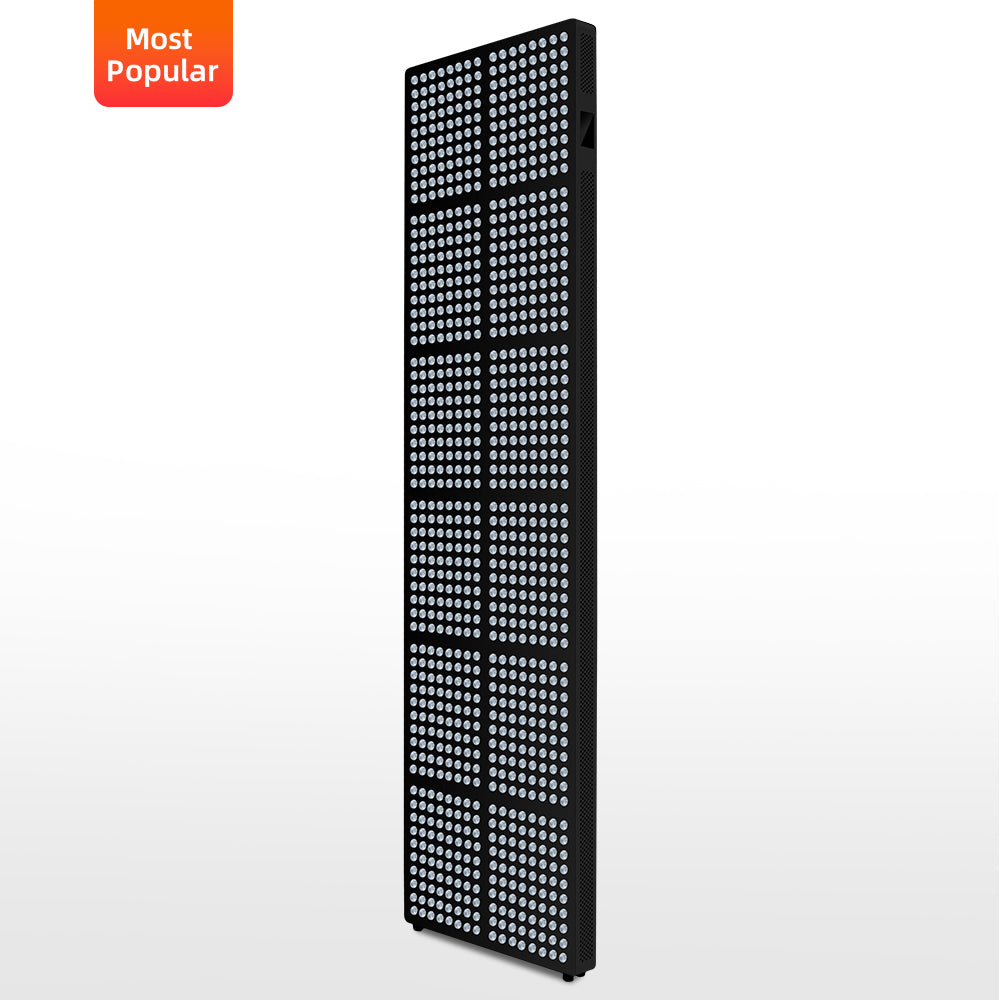

The SL5000 Red Light Panel is the largest model in the SL Series, designed to provide extensive full-body light coverage for wellness centers, fitness facilities, recovery rooms, spas, clinics, and home use. Built with a durable iron frame, patented heat dissipation technology, and a modular internal design, the SL5000 is engineered for reliable long-term operation while simplifying maintenance.
Featuring 960 premium LEDs, the SL5000 delivers wide-area illumination with high irradiance output. Users can independently adjust Red and Near-Infrared (NIR) light intensity, timer, dimming, and pulse settings for flexible operation. The panel is available in either a 5-waveband or 7-waveband configuration to accommodate different lighting preferences.
Key Features
- Extra-large panel designed for extensive full-body light coverage.
- Durable iron frame with a clean, modern appearance.

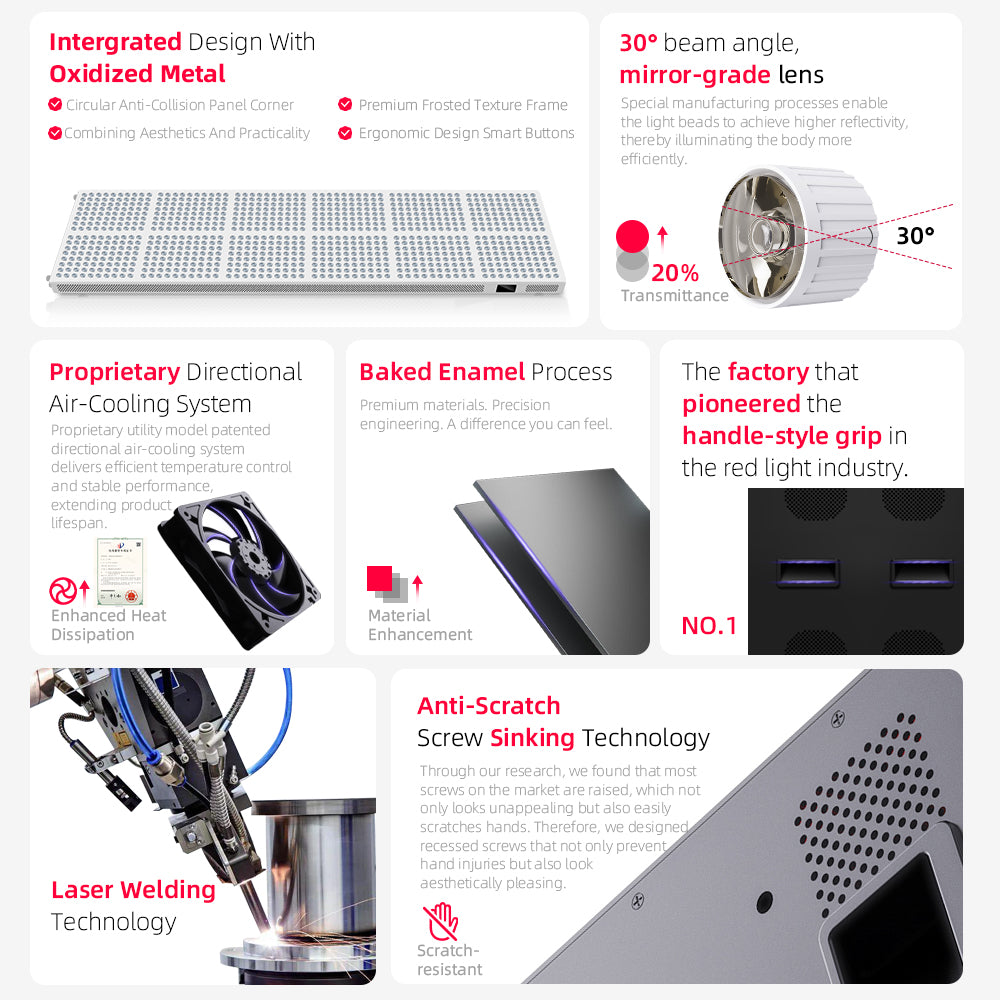

- Patented heat dissipation system helps maintain efficient operating temperatures.
- Modular internal construction for simplified maintenance and servicing.
- 960 premium LED chips featuring gold wire connections and copper holders for enhanced durability.
- Available in 5-waveband or 7-waveband LED configurations.
- High irradiance output for broad coverage.
- Independent adjustment of Red and Near-Infrared (NIR) light output.
- Touch key controls or optional Intelligent HD touchscreen.
- Wireless synchronization capability with compatible multiple-panel systems.
- Flicker-free operation.
Specifications
| Model | SL5000 |
|---|---|
| Frame Material | Iron |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Rated Power | 4800W |
| Power Consumption | 1310W |
| Dimensions | 1800 × 473 × 60 mm (70.9 × 18.6 × 2.4 in) |
| Weight | 27.7 kg (61 lb) |
| LED Quantity | 960 LEDs |
| Lens Beam Angle | 30° |
| Irradiance |
181 mW/cm² @ 6" 152 mW/cm² @ 12" 141 mW/cm² @ 18" 124 mW/cm² @ 24" |
| EMF | 0 μT @ 3" |
| Operation | Flicker-Free |
| Expected LED Lifespan | Up to 100,000 hours |
| Warranty | 3-Year Limited Warranty |
| Timer | 1–30 minutes or adjustable 0–30 minutes (independently controls Red & NIR output) |
| Dimmer | 100% or adjustable 0–100% (independently controls Red & NIR output) |
| Pulse Mode | 0 Hz or adjustable 0–10,000 Hz (independently controls Red & NIR output) |
| Control Options | Touch key controls or optional Intelligent HD touchscreen with wireless multi-panel synchronization |
Available LED Waveband Configurations
5-Waveband Configuration
630nm • 660nm • 810nm • 830nm • 850nm
LED Distribution
- 630nm × 96
- 660nm × 384
- 810nm × 48
- 830nm × 48
- 850nm × 384
7-Waveband Configuration
480nm • 630nm • 660nm • 810nm • 830nm • 850nm • 940nm
LED Distribution
- 480nm × 24
- 630nm × 96
- 660nm × 312
- 810nm × 48
- 830nm × 48
- 850nm × 384
- 940nm × 48
Package Includes
- SL5000 Red Light Panel
- Integrated control system
- User documentation
Ideal Applications
The SL5000 is designed for users requiring maximum light coverage in home wellness rooms, fitness facilities, spas, recovery centers, clinics, and other professional environments. Its extra-large format makes it suitable for comprehensive full-body illumination while maintaining a slim profile for wall-mounted or dedicated installation.
Additional Information
This product emits red and near-infrared light and is intended for light therapy applications only. It is not intended to diagnose, treat, cure, or prevent any disease. Always operate the panel according to the manufacturer's instructions. Product specifications are subject to change without prior notice.
