Product Overview

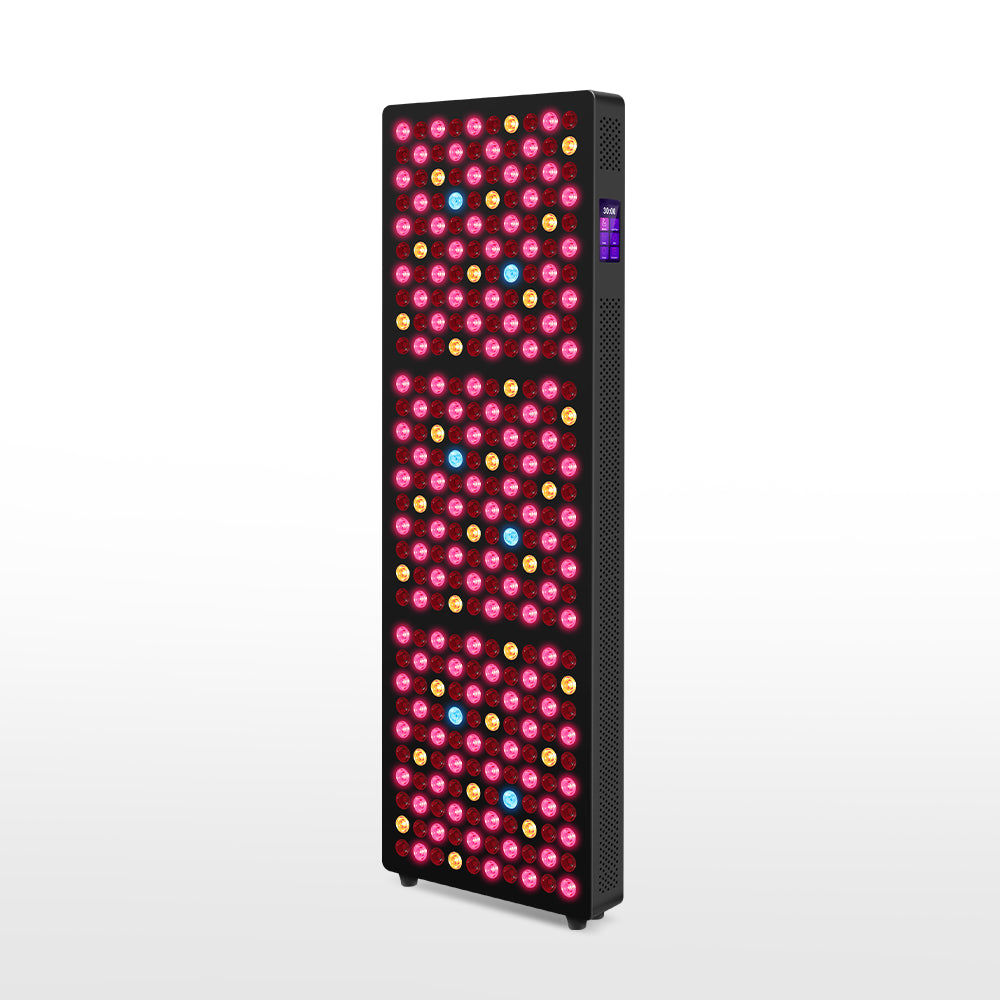

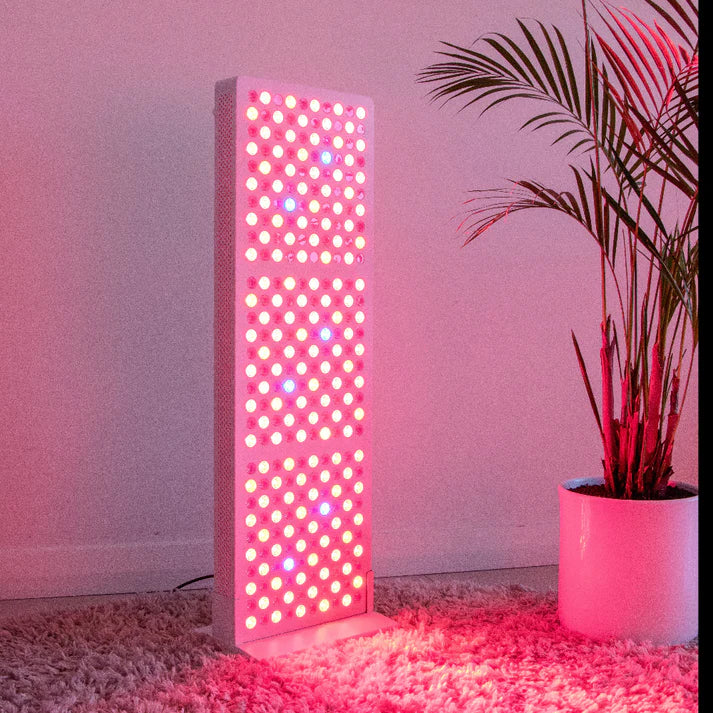

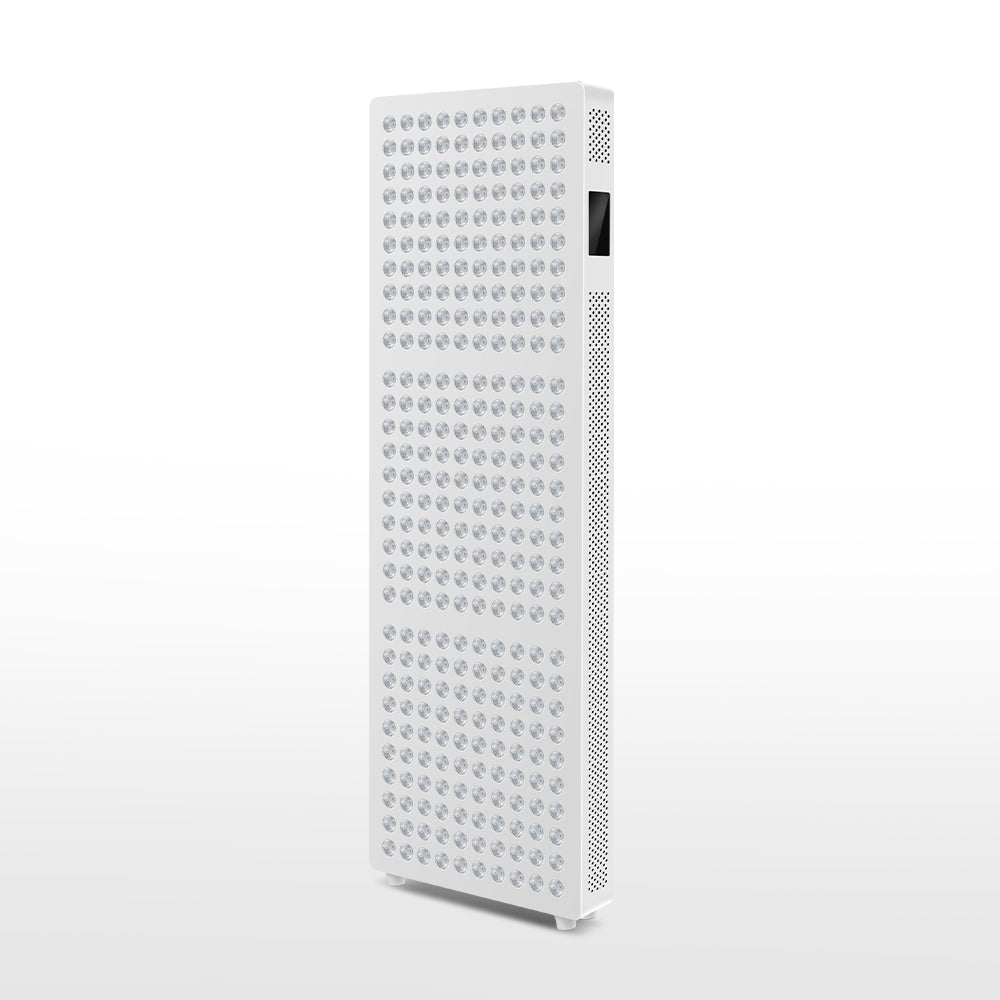

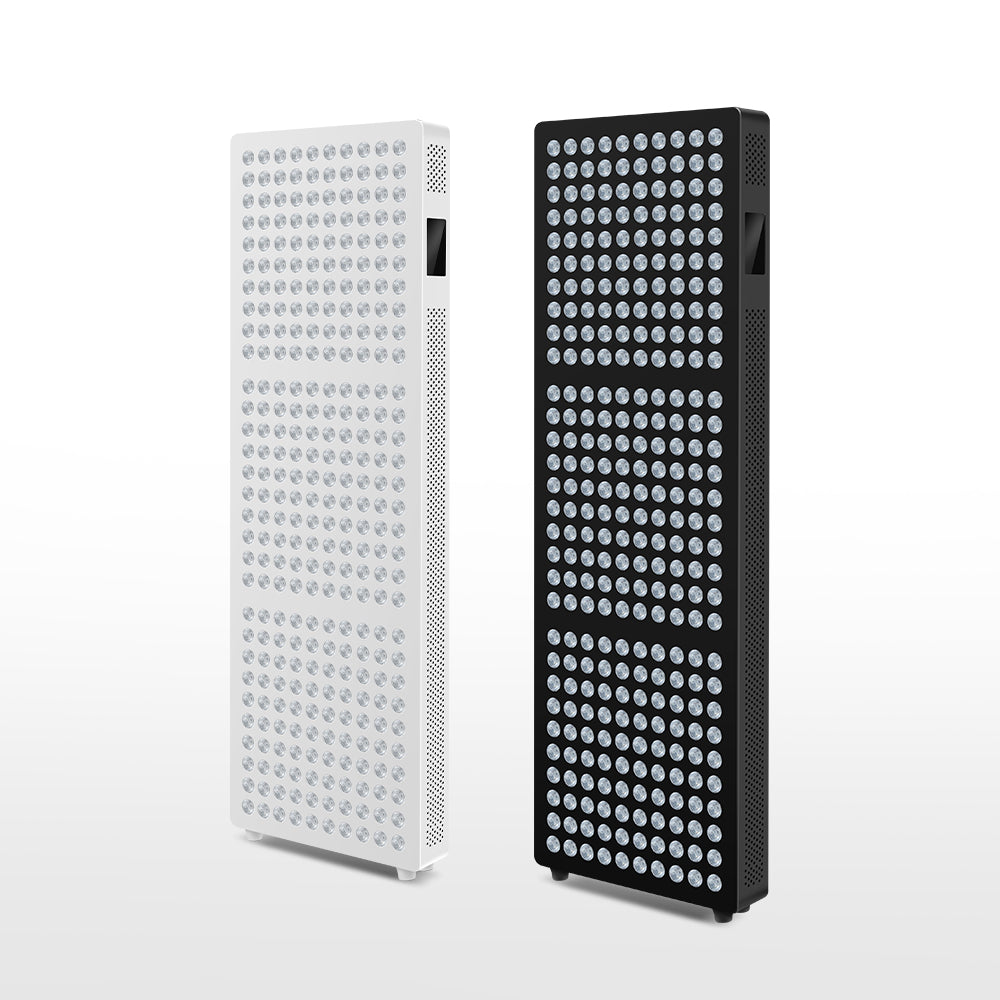

The SL1500 Red Light Panel is a professional-grade LED light panel designed to deliver expansive light coverage for home wellness spaces, fitness facilities, spas, recovery rooms, and clinical environments. Featuring a sleek iron frame, patented heat dissipation technology, and a modular internal design, the SL1500 is engineered for dependable performance, efficient cooling, and simplified maintenance.
With 300 premium LEDs and a high-output optical design, the SL1500 provides broad and uniform illumination while offering independent control of Red and Near-Infrared (NIR) light output. Available in either a 5-waveband or 7-waveband configuration, this panel combines customizable operating modes with durable construction for long-term use.
Key Features
- Sleek iron frame with a modern, seamless appearance.
- Patented heat dissipation system designed for efficient cooling.
- Modular internal construction for easier servicing and maintenance.

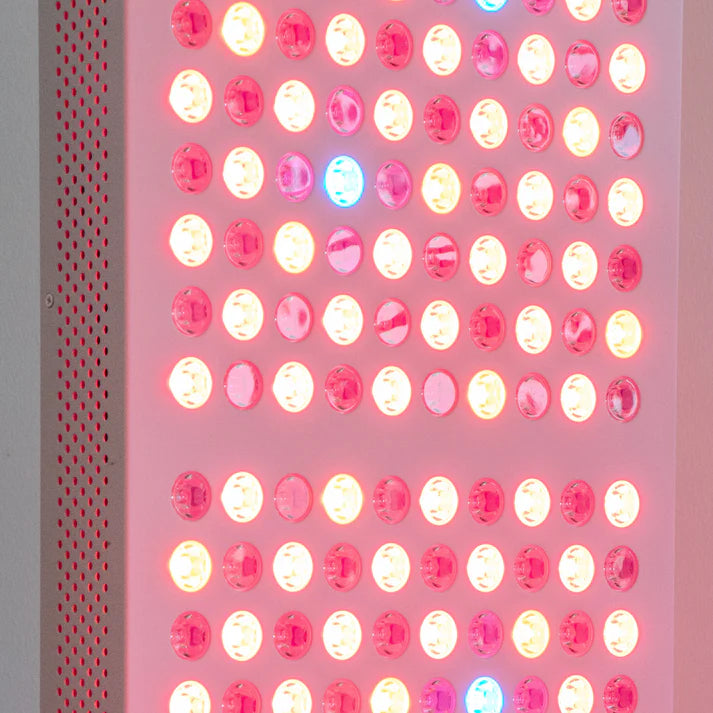

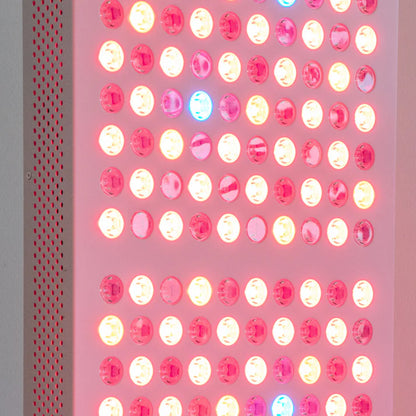

- 300 premium LED chips featuring gold wire connections and copper holders for enhanced durability.
- Available in 5-waveband or 7-waveband LED configurations.
- High irradiance output for larger treatment areas.
- Independent adjustment of Red and Near-Infrared (NIR) light intensity.

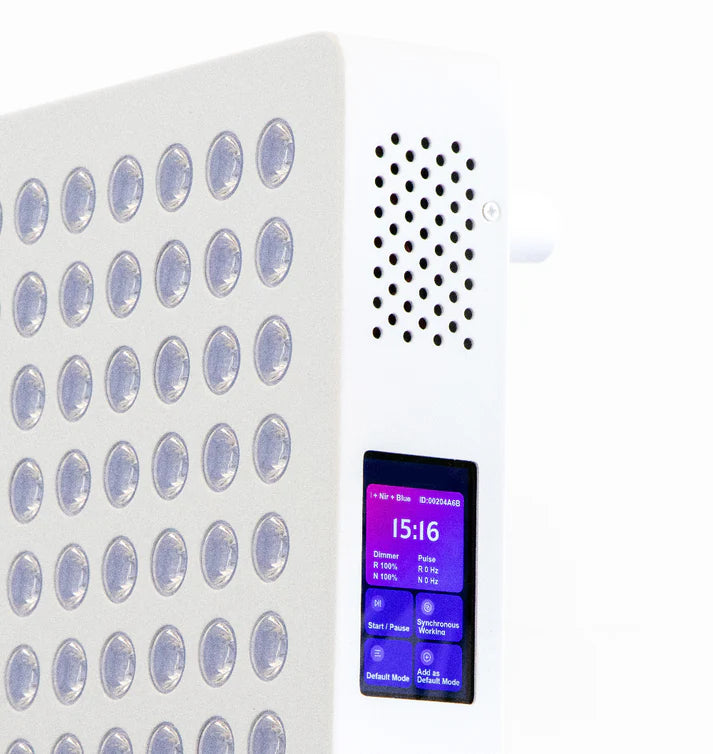

- Touch key controls or optional Intelligent HD touchscreen interface.
- Wireless synchronization with compatible multiple-panel systems.
- Flicker-free operation.
Specifications
| Model | SL1500 |
|---|---|
| Frame Material | Iron |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Rated Power | 1500W |
| Power Consumption | 433W |
| Dimensions | 910 × 298 × 60 mm (35.8 × 11.7 × 2.4 in) |
| Weight | 8.6 kg (19 lb) |
| LED Quantity | 300 LEDs |
| Lens Beam Angle | 30° |
| Irradiance |
172 mW/cm² @ 6" 141 mW/cm² @ 12" 125 mW/cm² @ 18" 103 mW/cm² @ 24" |
| EMF | 0 μT @ 2" |
| Operation | Flicker-Free |
| Expected LED Lifespan | Up to 100,000 hours |
| Warranty | 3-Year Limited Warranty |
| Timer | 1–30 minutes or adjustable 0–30 minutes (independently controls Red & NIR output) |
| Dimmer | 100% or adjustable 0–100% (independently controls Red & NIR output) |
| Pulse Mode | 0 Hz or adjustable 0–10,000 Hz (independently controls Red & NIR output) |
| Control Options | Touch key controls or optional Intelligent HD touchscreen with wireless multi-panel synchronization |

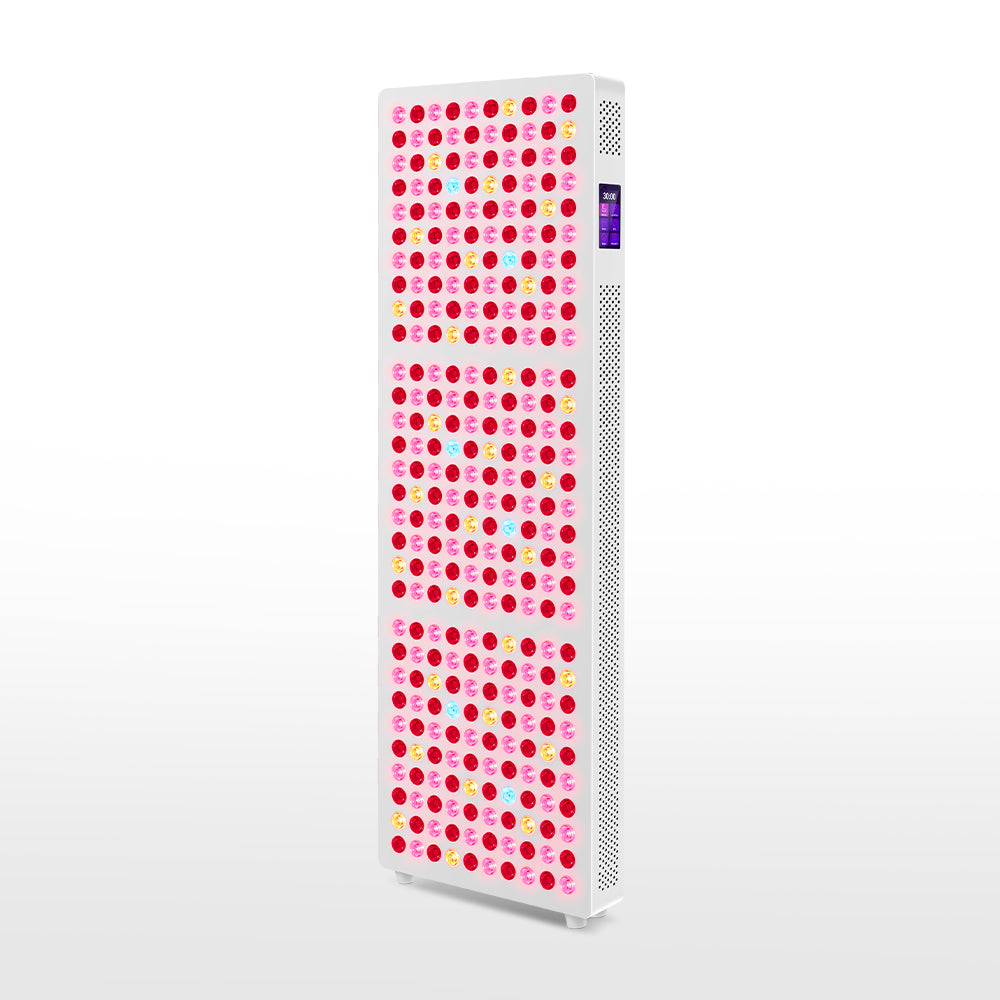

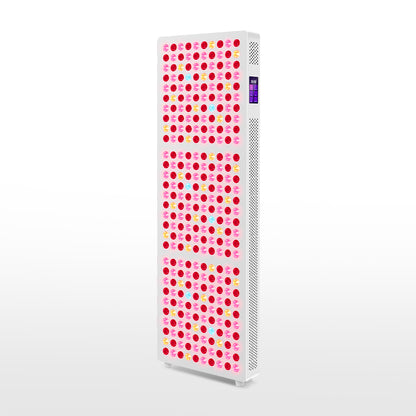

Available LED Waveband Configurations
5-Waveband Configuration
630nm • 660nm • 810nm • 830nm • 850nm
LED Distribution
- 630nm × 30
- 660nm × 120
- 810nm × 15
- 830nm × 15
- 850nm × 120
7-Waveband Configuration
480nm • 630nm • 660nm • 810nm • 830nm • 850nm • 940nm
LED Distribution
- 480nm × 6
- 630nm × 30
- 660nm × 114
- 810nm × 15
- 830nm × 15
- 850nm × 111
- 940nm × 9
Package Includes
- SL1500 Red Light Panel
- Integrated control system
- User documentation
Ideal Applications

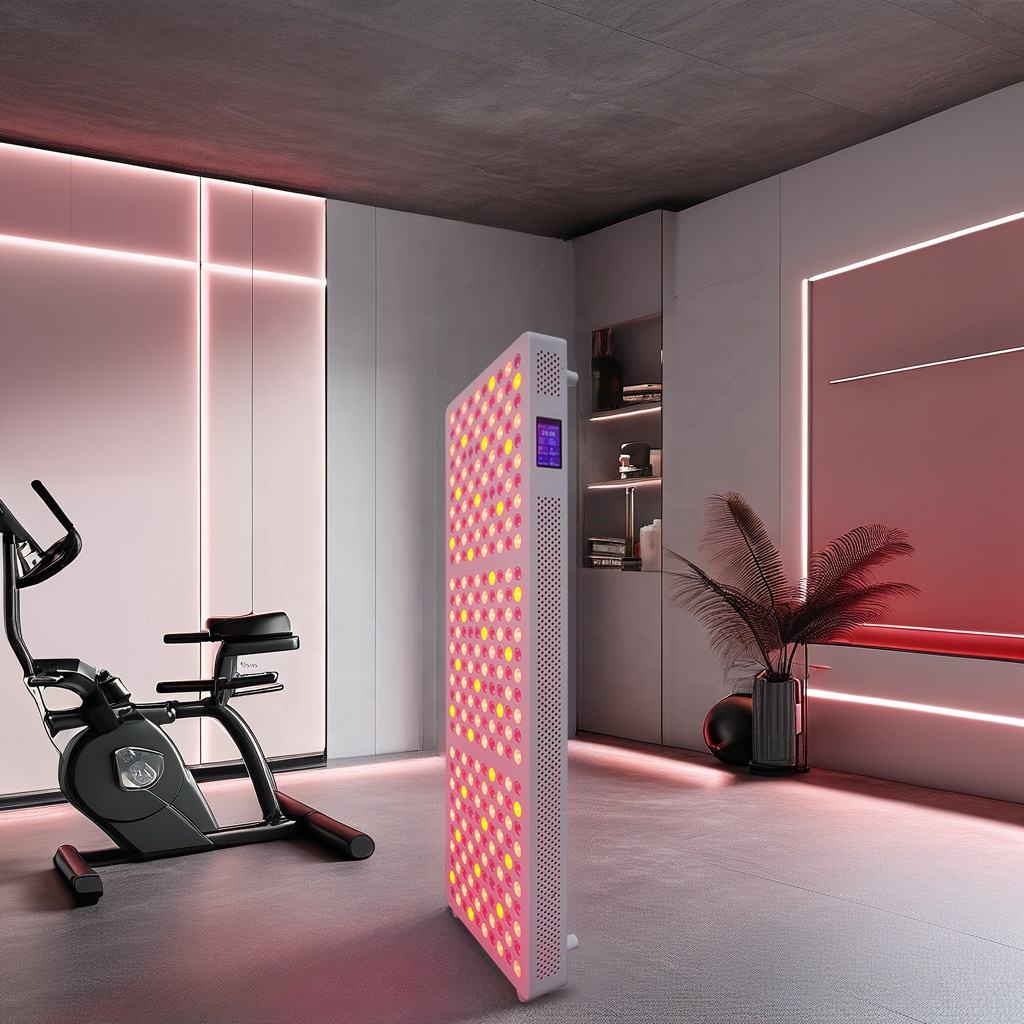

The SL1500 is well suited for home wellness rooms, fitness studios, recovery areas, spas, clinics, and other professional environments where increased light coverage is desired. Its larger panel design provides efficient illumination for broader treatment areas while maintaining a slim installation profile.
Additional Information
This product emits red and near-infrared light and is intended for light therapy applications only. It is not intended to diagnose, treat, cure, or prevent any disease. Always operate the panel according to the manufacturer's instructions. Product specifications are subject to change without prior notice.
