Product Overview

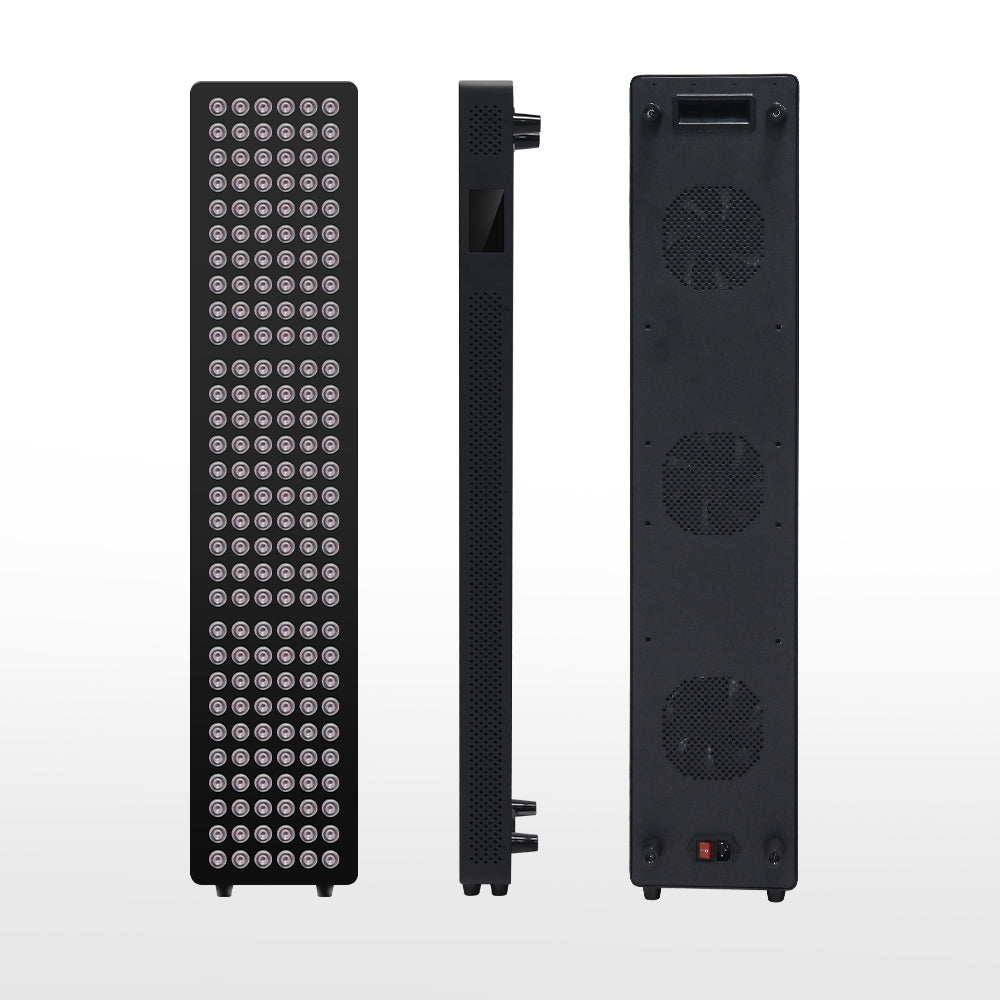

The SL1000 Red Light Panel is a mid-size LED light panel designed to provide broad light coverage for home, wellness, fitness, spa, and professional environments. Featuring a durable iron frame with sleek, seamless styling, the SL1000 incorporates a patented heat dissipation system and a modular internal design to promote efficient cooling, reliable operation, and simplified maintenance.
Equipped with 180 premium LEDs, the SL1000 is available in either a 5-waveband or 7-waveband configuration. Independent controls for Red and Near-Infrared (NIR) output, adjustable timer, dimming, and pulse settings allow users to customize operation to suit a variety of applications.
Key Features
- Modern iron frame with sleek, seamless design.
- Patented cooling system engineered for efficient heat dissipation.
- Modular internal construction simplifies maintenance and servicing.
- 180 premium LED chips featuring gold wire connections and copper holders for enhanced durability.
- Available in either 5-waveband or 7-waveband LED configurations.
- High irradiance output for broad light coverage.
- Independent adjustment of Red and Near-Infrared (NIR) light output.
- Touch key controls or optional Intelligent HD touchscreen.
- Wireless synchronization available with compatible touchscreen models.
- Flicker-free operation.
Specifications
| Model | SL1000 |
|---|---|
| Frame Material | Iron |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Rated Power | 900W |
| Power Consumption | 260W |
| Dimensions | 910 × 195 × 60 mm (35.8 × 7.7 × 2.4 in) |
| Weight | 6.4 kg (14.1 lb) |
| LED Quantity | 180 LEDs |
| Lens Beam Angle | 30° |
| Irradiance |
170 mW/cm² @ 6" 131 mW/cm² @ 12" 104 mW/cm² @ 18" 85 mW/cm² @ 24" |
| EMF | 0 μT @ 1" |
| Operation | Flicker-Free |
| Expected LED Lifespan | Up to 100,000 hours |
| Warranty | 3-Year Limited Warranty |
| Timer | 1–30 minutes or adjustable 0–30 minutes (independent Red & NIR control) |
| Dimmer | 100% or adjustable 0–100% (independent Red & NIR control) |
| Pulse Mode | 0 Hz or adjustable 0–10,000 Hz (independent Red & NIR control) |
| Control Options | Touch key controls or optional Intelligent HD touchscreen with wireless multi-panel control |
Available LED Waveband Configurations
5-Waveband Configuration
630nm • 660nm • 810nm • 830nm • 850nm
LED Distribution
- 630nm × 18
- 660nm × 72
- 810nm × 9
- 830nm × 9
- 850nm × 72
7-Waveband Configuration
480nm • 630nm • 660nm • 810nm • 830nm • 850nm • 940nm
LED Distribution
- 480nm × 6
- 630nm × 18
- 660nm × 66
- 810nm × 9
- 830nm × 9
- 850nm × 63
- 940nm × 9

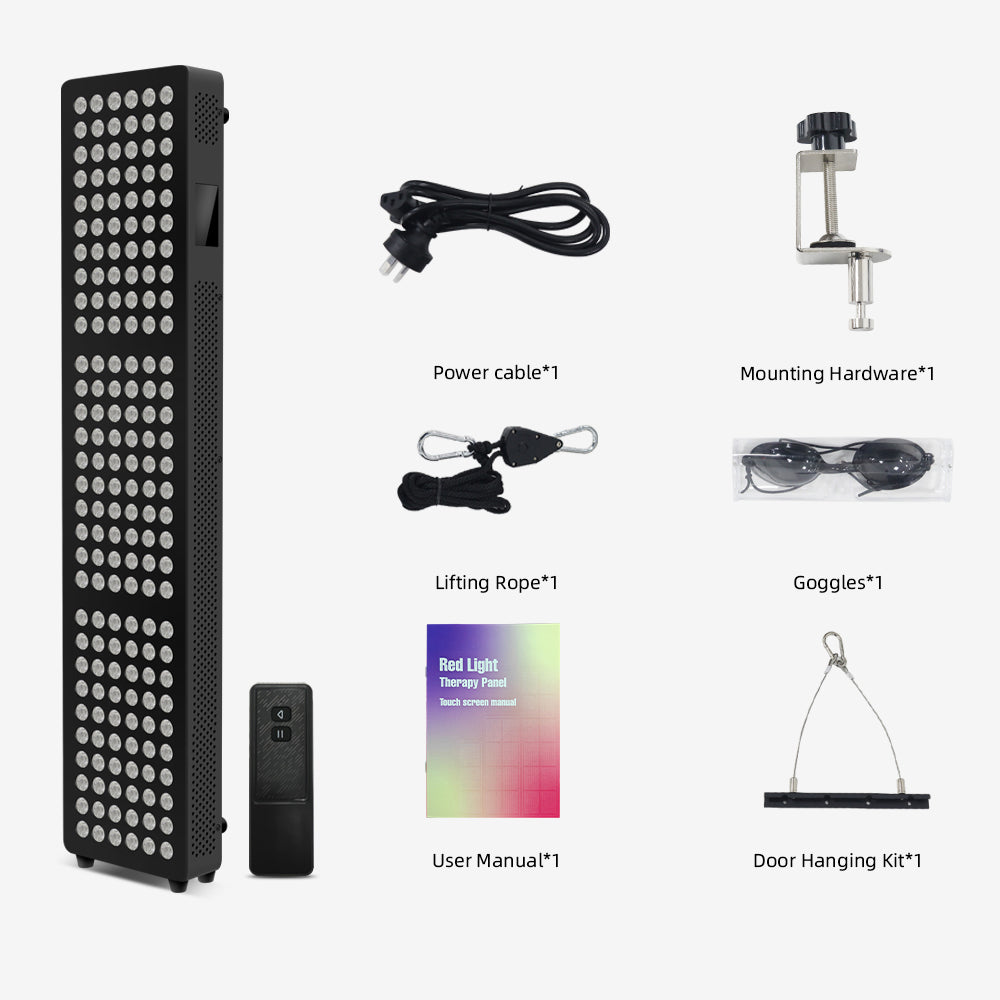

Package Includes
- SL1000 Red Light Panel
- Integrated control system
- User documentation
Ideal Applications
The SL1000 is suitable for home wellness spaces, fitness rooms, spas, recovery areas, clinics, and other professional environments requiring medium-sized light coverage. Its slim profile makes it suitable for wall mounting or dedicated treatment spaces.
Additional Information
This product emits red and near-infrared light and is intended for light therapy applications only. It is not intended to diagnose, treat, cure, or prevent any disease. Always operate the panel according to the manufacturer's instructions. Product specifications are subject to change without prior notice.
