Product Overview

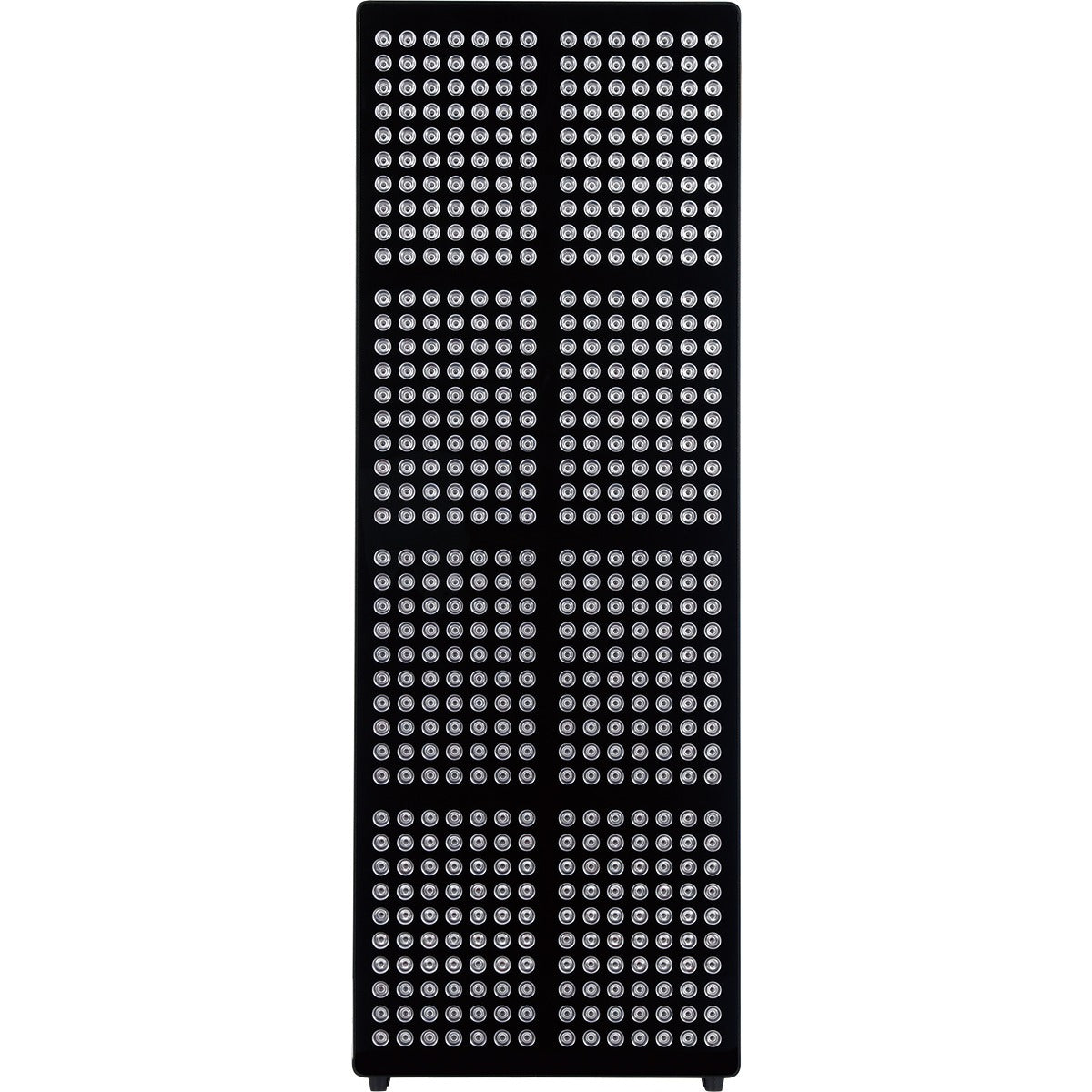

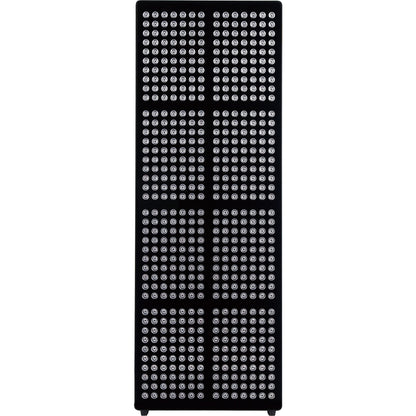

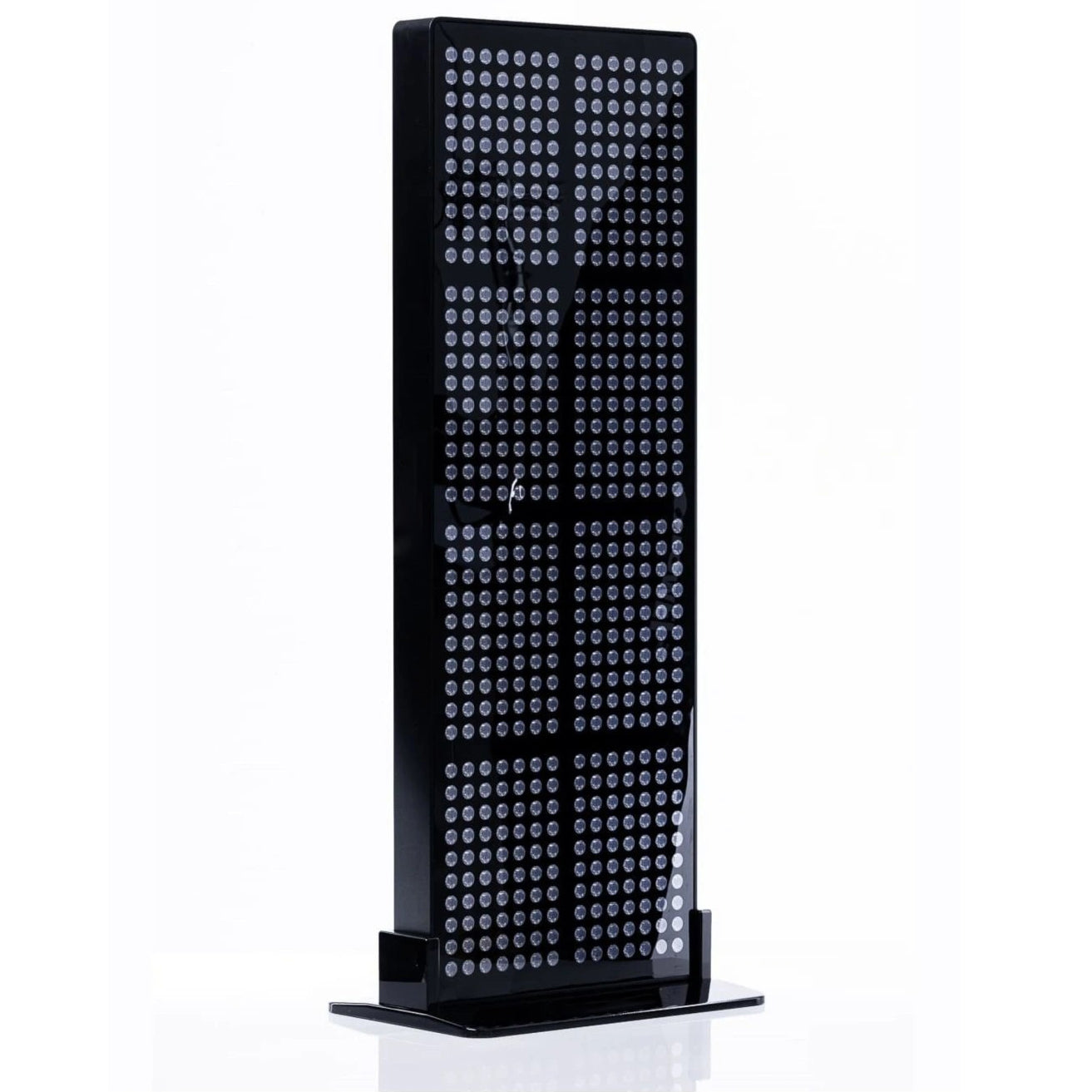

The RH2400 Full Body Red Light Panel is a high-capacity LED light panel designed for users seeking extensive light coverage in home, wellness, fitness, spa, and professional settings. Built with a durable aluminum alloy frame, a patented heat dissipation system, and a modular internal design, the RH2400 is engineered for dependable operation, simplified servicing, and long-lasting performance.

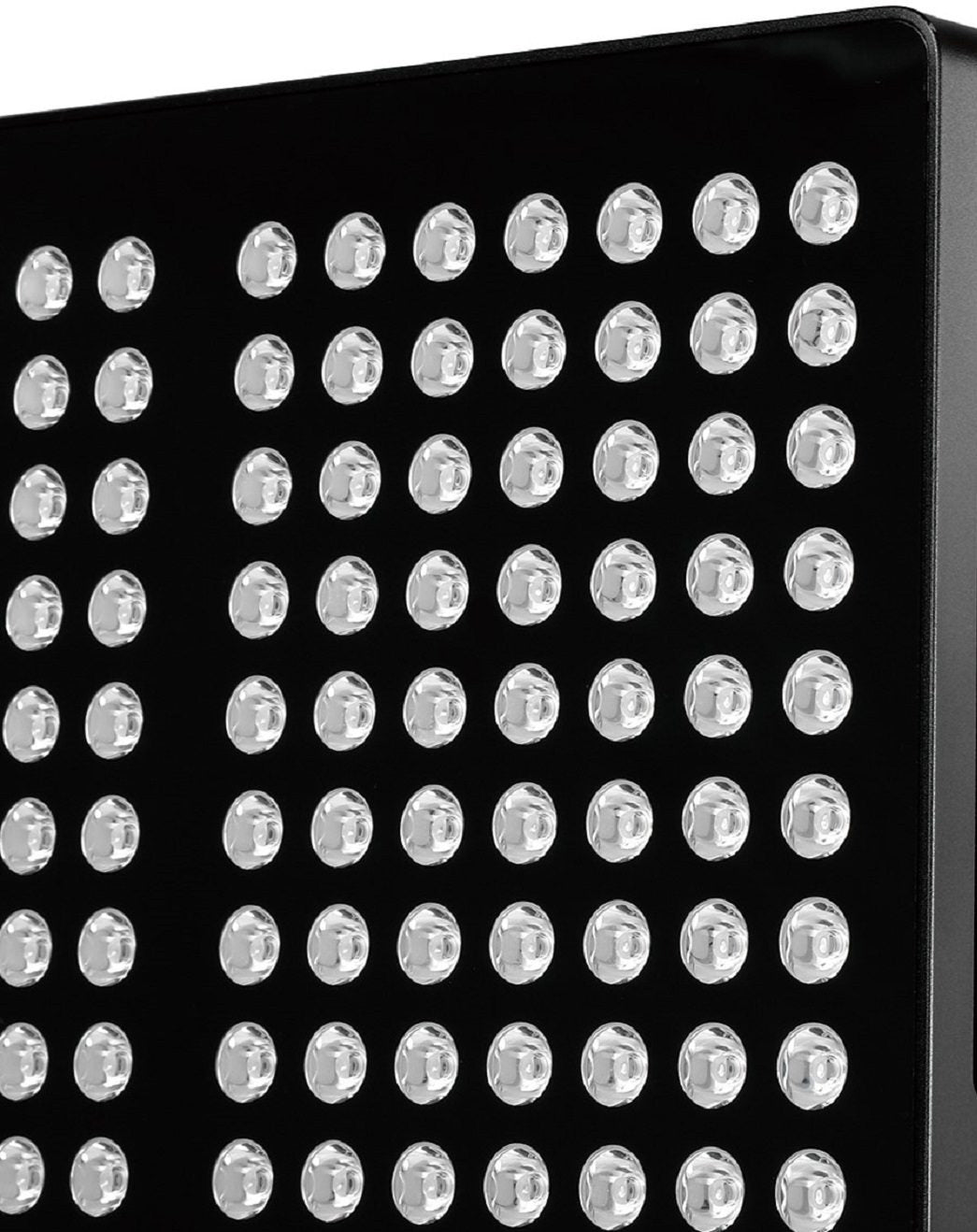

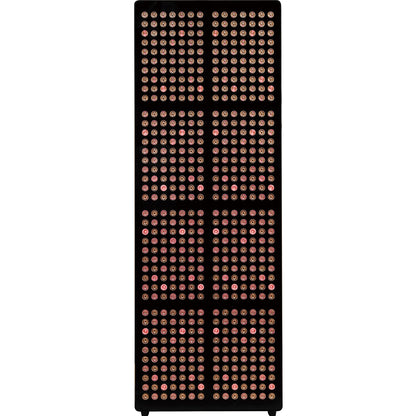

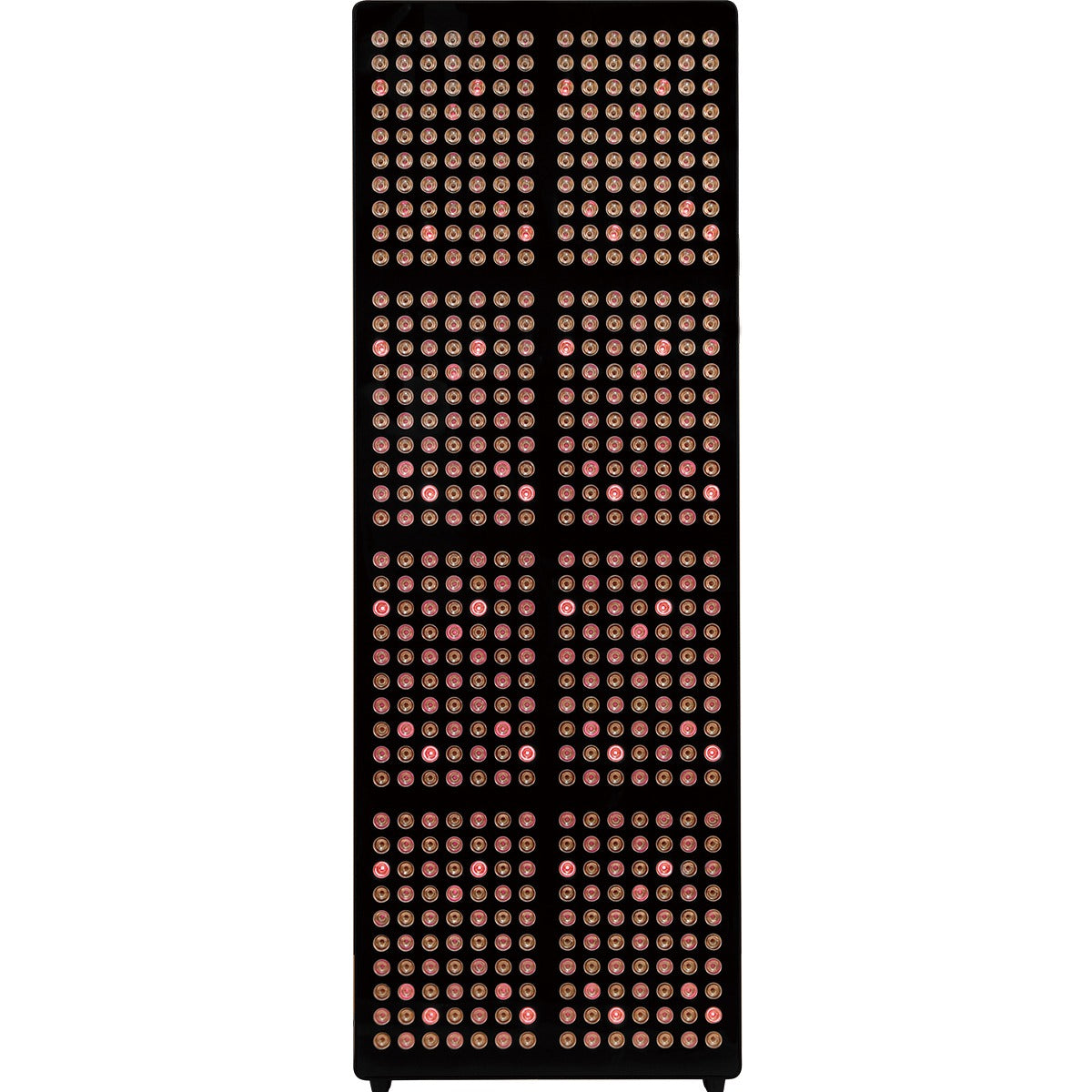

Featuring 560 premium LEDs protected by a patented acrylic front panel, the RH2400 delivers wide-area illumination while helping protect the LEDs from dust, scratches, and everyday wear. Independent controls for Red and Near-Infrared (NIR) output, along with adjustable timer, dimming, and pulse settings, provide flexible operation for a variety of lighting applications.
Key Features
- Heavy-duty aluminum alloy construction for durability and efficient heat management.

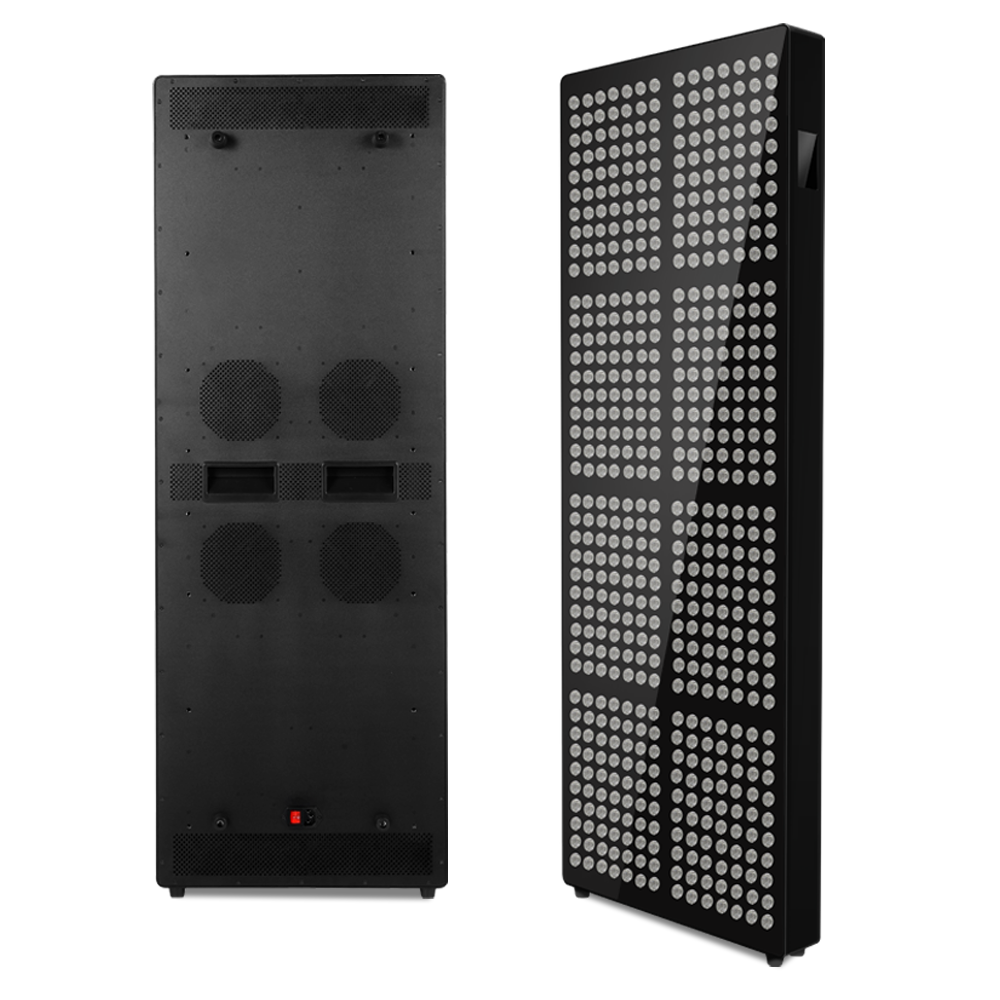

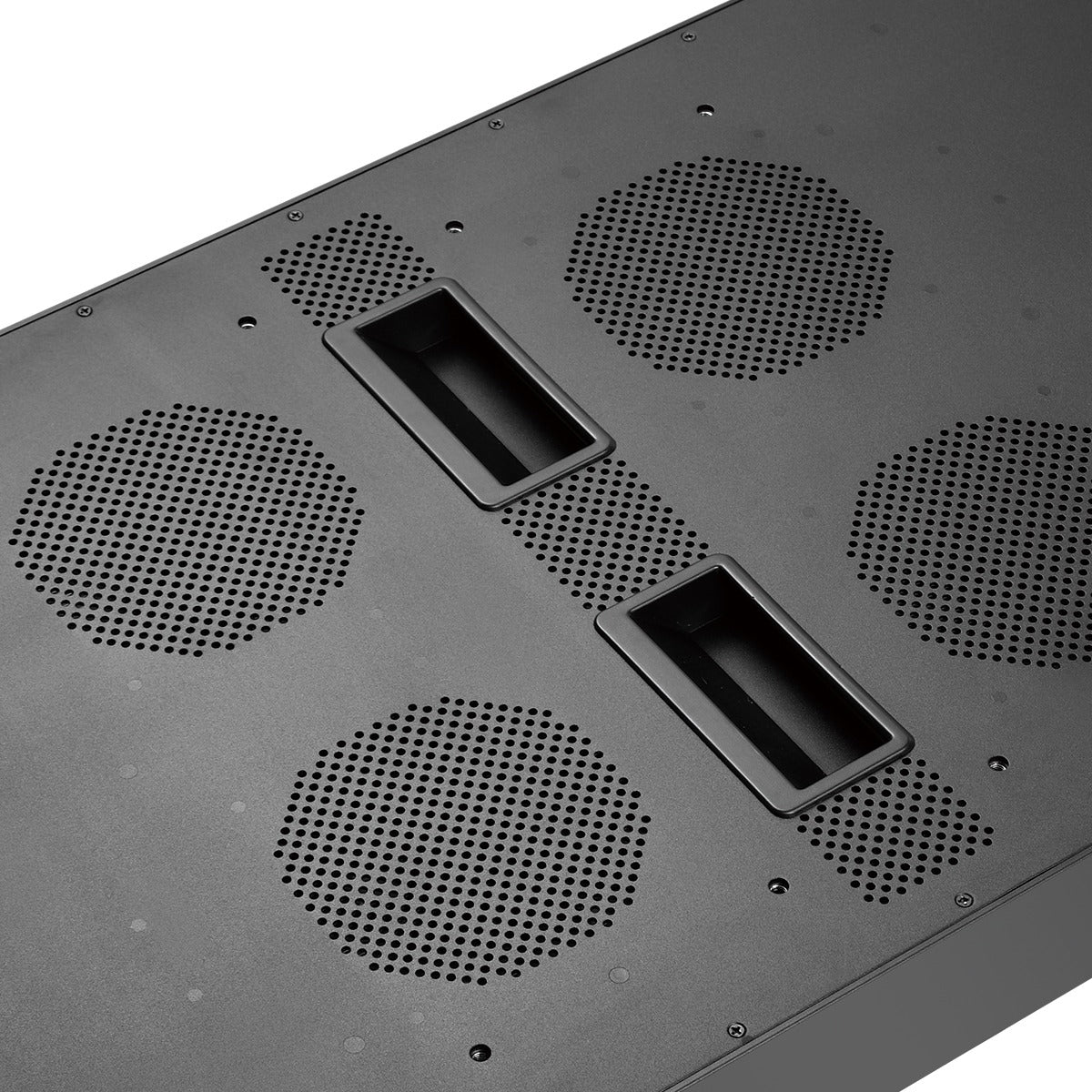

- Patented heat dissipation system designed to help maximize LED lifespan.
- Protective acrylic panel helps shield LEDs from dust, scratches, and damage.
- Modular internal design allows for easier maintenance and servicing.
- 560 premium LED chips featuring gold wire connections and copper holders for enhanced reliability.
- Available in either 5-waveband or 7-waveband LED configurations.

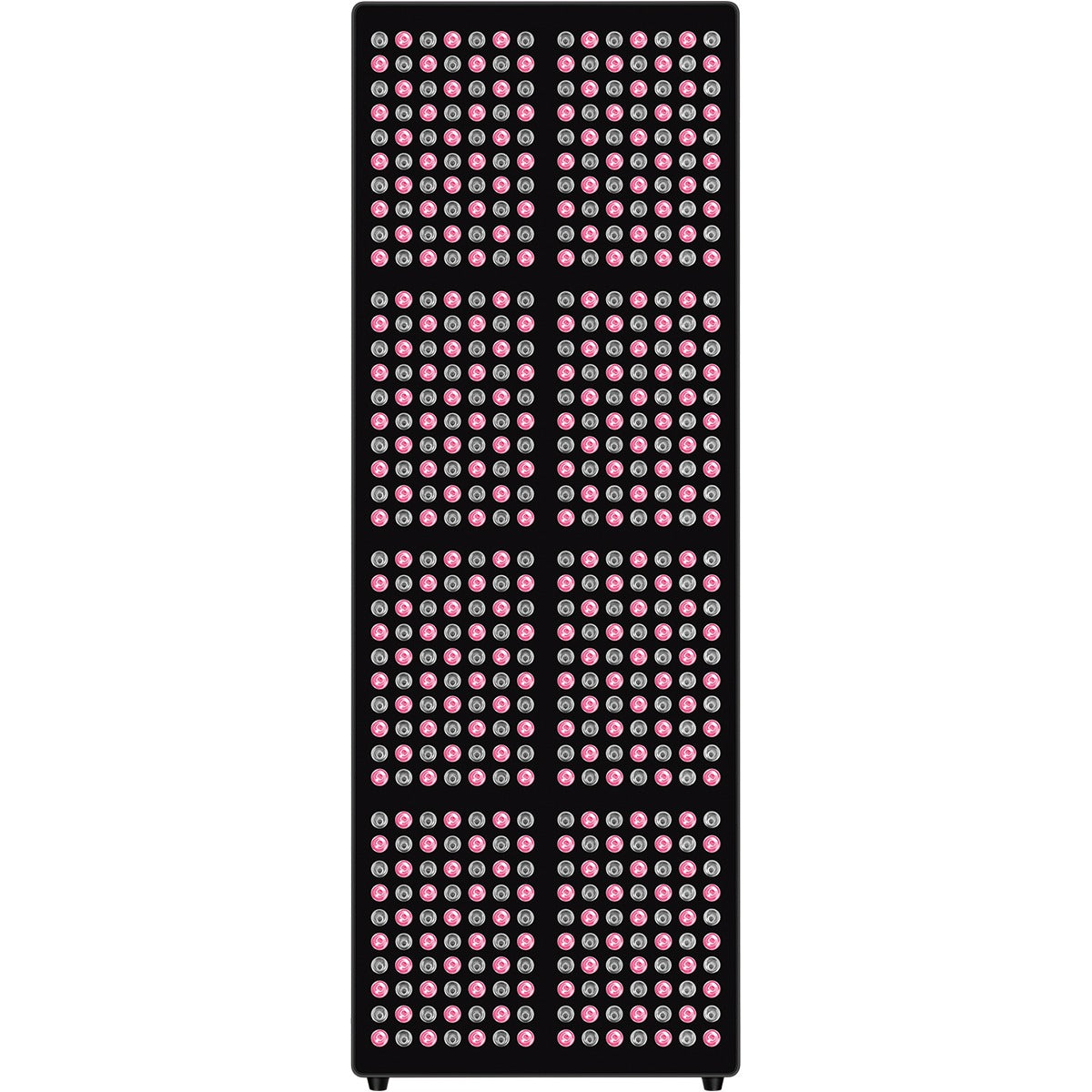

- Independent adjustment of Red and Near-Infrared (NIR) light output.

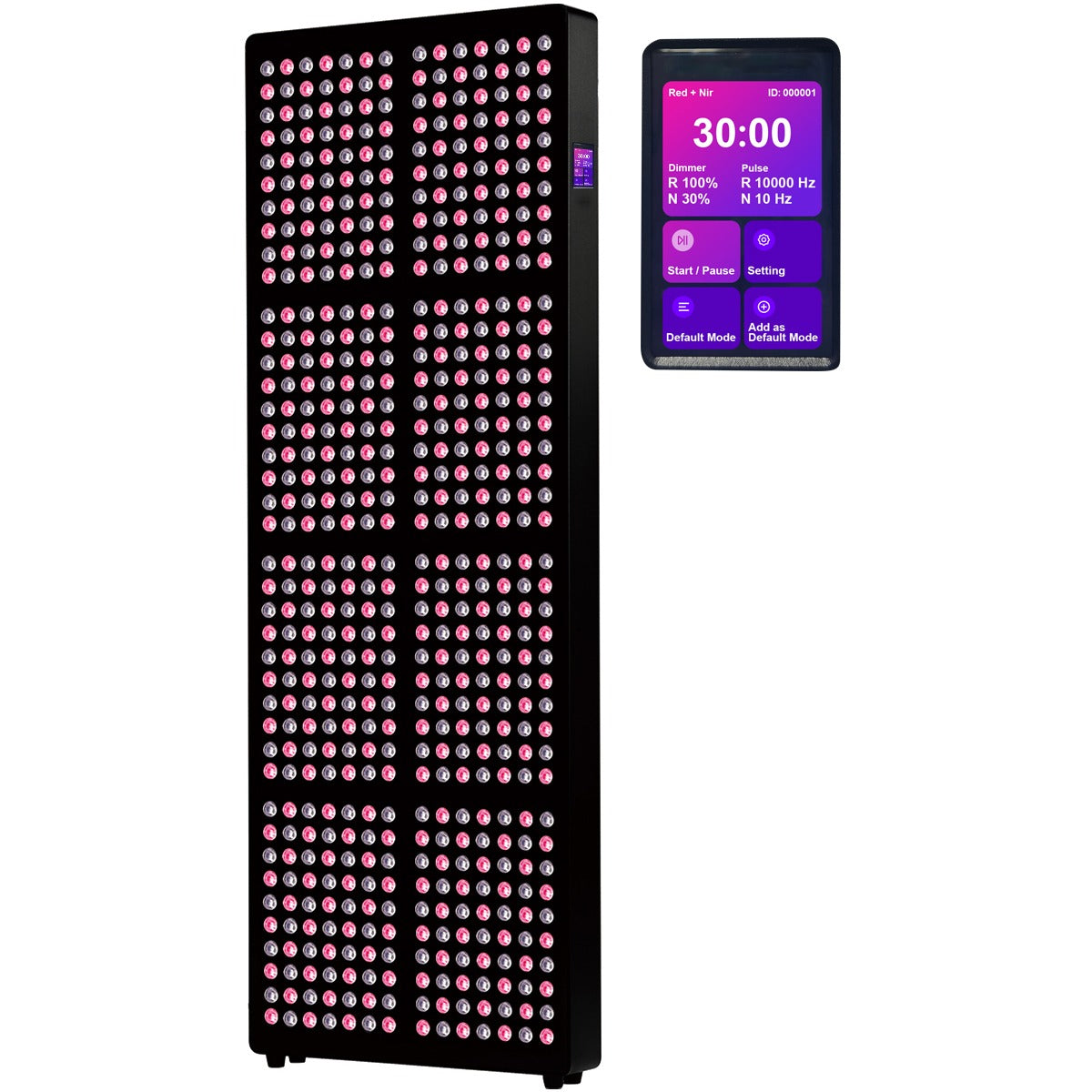

- Touch key controls or optional Intelligent HD color touchscreen.
- Wireless synchronization capability for multiple compatible panels.
- Flicker-free operation.
Specifications
| Model | RH2400 |
|---|---|
| Frame Material | Aluminum Alloy |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Rated Power | 2800W |
| Power Consumption | 728W |
| Dimensions | 1159 × 415 × 71 mm (45.6 × 16.3 × 2.79 in) |
| Weight | 18.5 kg (40.8 lb) |
| LED Quantity | 560 LEDs |
| Lens Beam Angle | 30° |
| Irradiance |
152 mW/cm² @ 6" 131 mW/cm² @ 12" 117 mW/cm² @ 18" 101 mW/cm² @ 24" |
| EMF | 0 μT @ 3" |
| Operation | Flicker-Free |
| Expected LED Lifespan | Up to 100,000 hours |
| Warranty | 3-Year Limited Warranty |
| Timer | 5, 10, 15, 20, 25, 30 minutes or adjustable 0–30 minutes (independent Red & NIR control) |
| Dimmer | 20%, 40%, 60%, 80%, 100% or adjustable 0–100% (independent Red & NIR control) |
| Pulse Mode | 10, 40, 73, 146, 293, 587 Hz or adjustable 0–10,000 Hz (independent Red & NIR control) |
| Control Options | Touch key controls or optional Intelligent HD color touchscreen with wireless multi-panel control |
Available LED Waveband Configurations

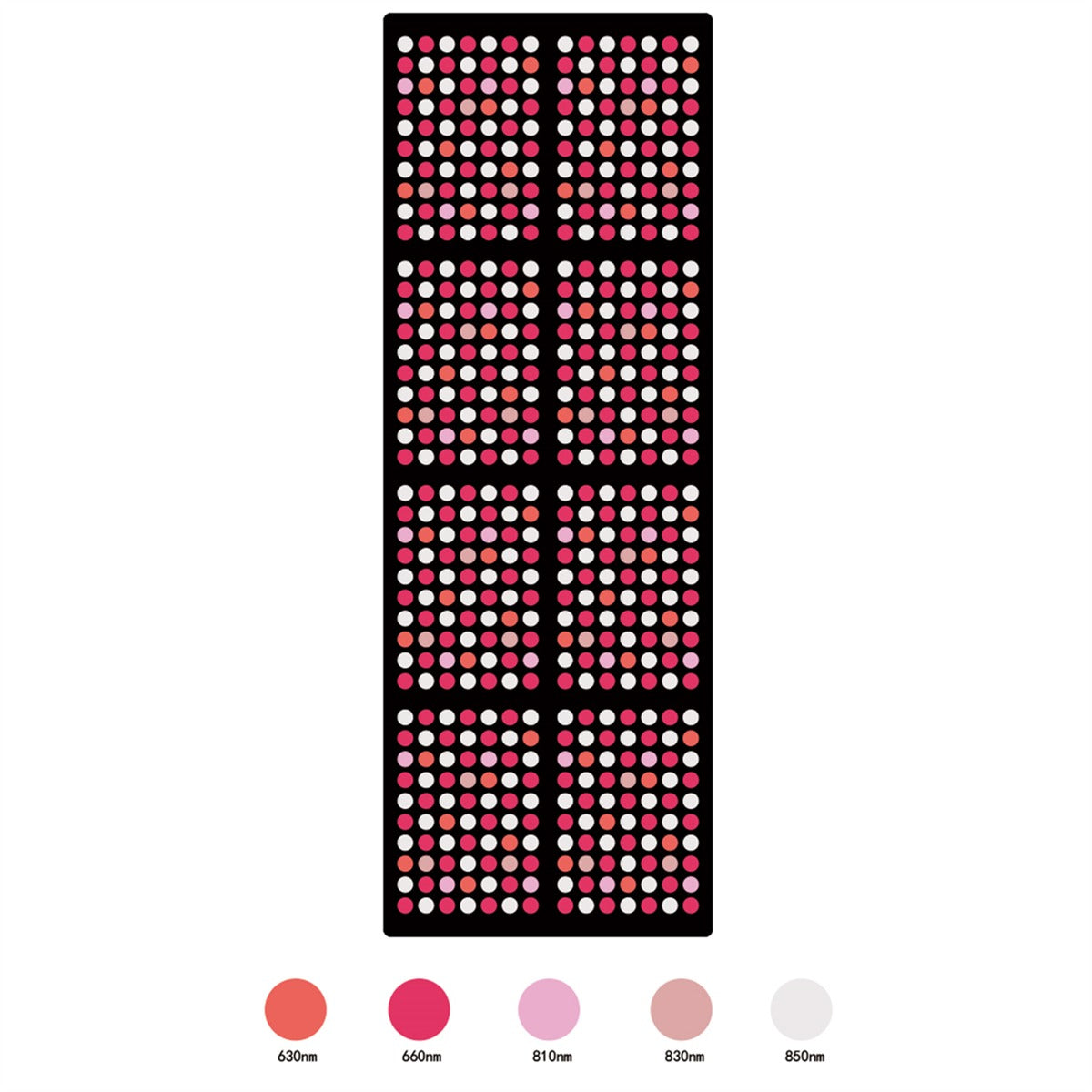

5-Waveband Configuration
630nm • 660nm • 810nm • 830nm • 850nm
LED Distribution
- 630nm × 56
- 660nm × 224
- 810nm × 32
- 830nm × 24
- 850nm × 224
7-Waveband Configuration
480nm • 630nm • 660nm • 810nm • 830nm • 850nm • 940nm
LED Distribution
- 480nm × 16
- 630nm × 56
- 660nm × 208
- 810nm × 32
- 830nm × 24
- 850nm × 200
- 940nm × 24
Package Includes
- RH2400 Red Light Panel
- Integrated control system
- User documentation
Ideal Applications
The RH2400 is designed for users requiring broad light coverage in wellness rooms, fitness centers, recovery spaces, spas, clinics, and other professional environments. Its large panel size makes it suitable for covering larger areas during a single session.
Additional Information
This product emits red and near-infrared light and is intended for light therapy applications only. It is not intended to diagnose, treat, cure, or prevent any disease. Always operate the panel according to the manufacturer's instructions. Product specifications are subject to change without notice.
