Product Overview

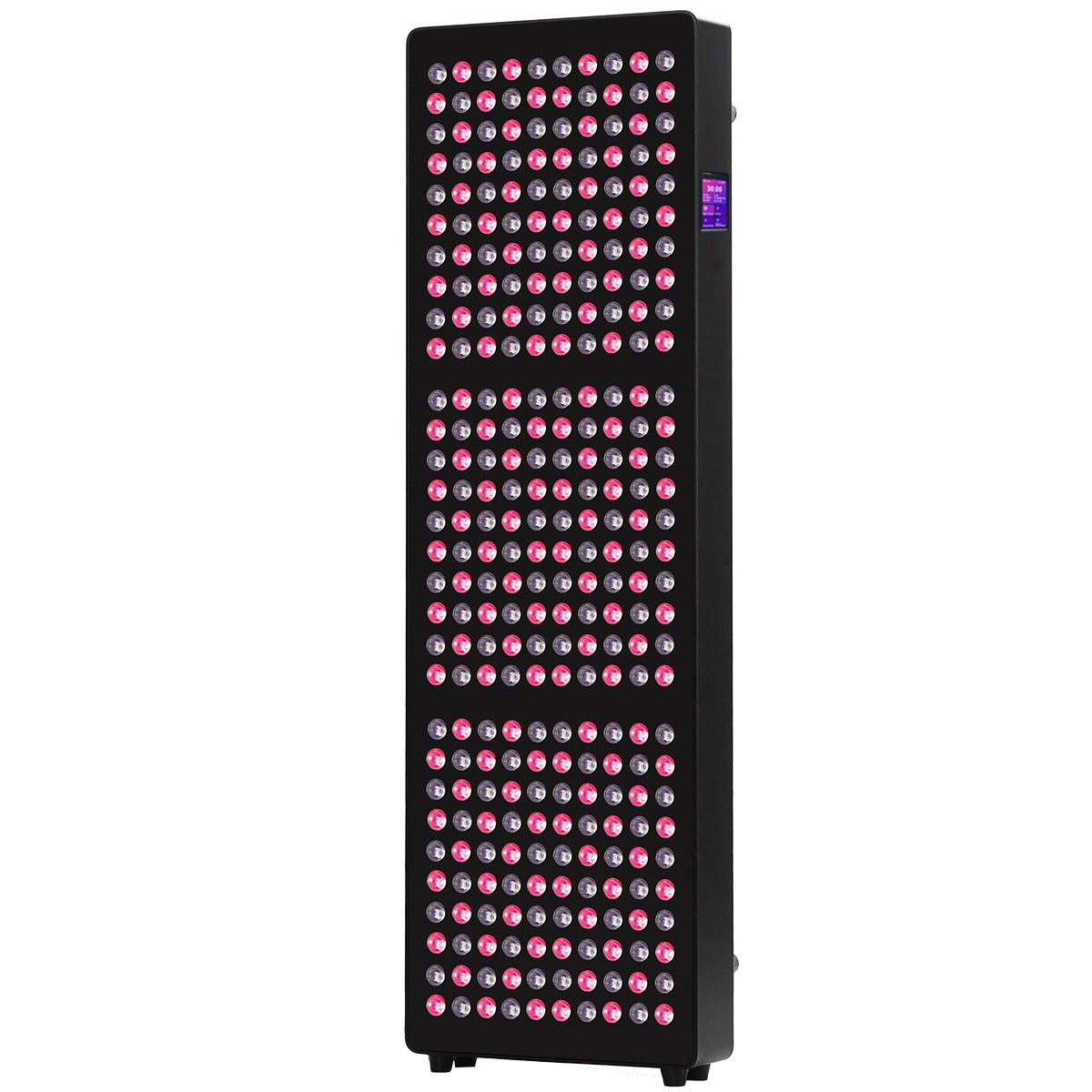

The RH1500 Full Body Red Light Panel is a high-performance LED light panel engineered for home, wellness, fitness, spa, and professional environments. Featuring a durable aluminum alloy frame, patented heat dissipation technology, and a modular internal design, the RH1500 is built for dependable operation and simplified maintenance.

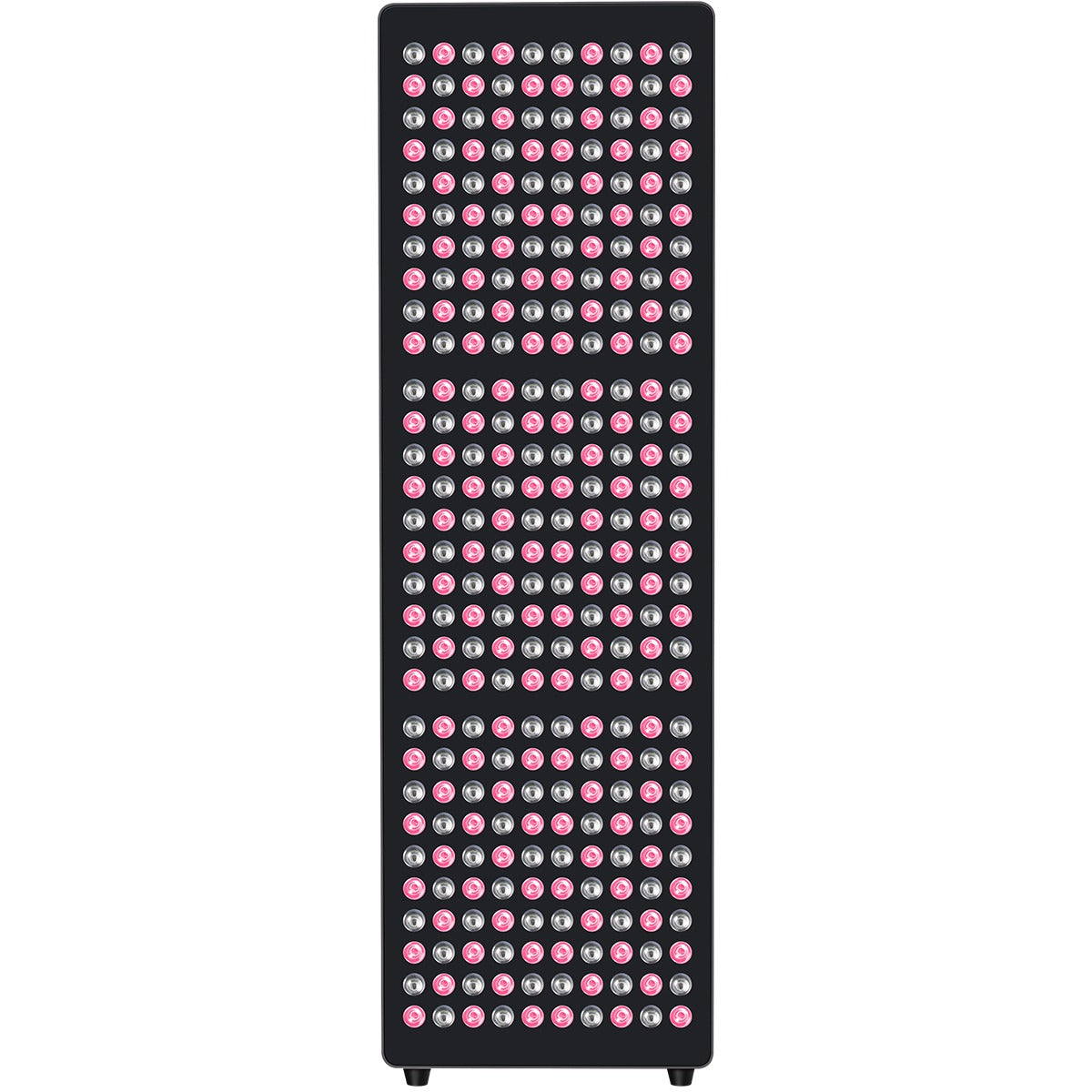

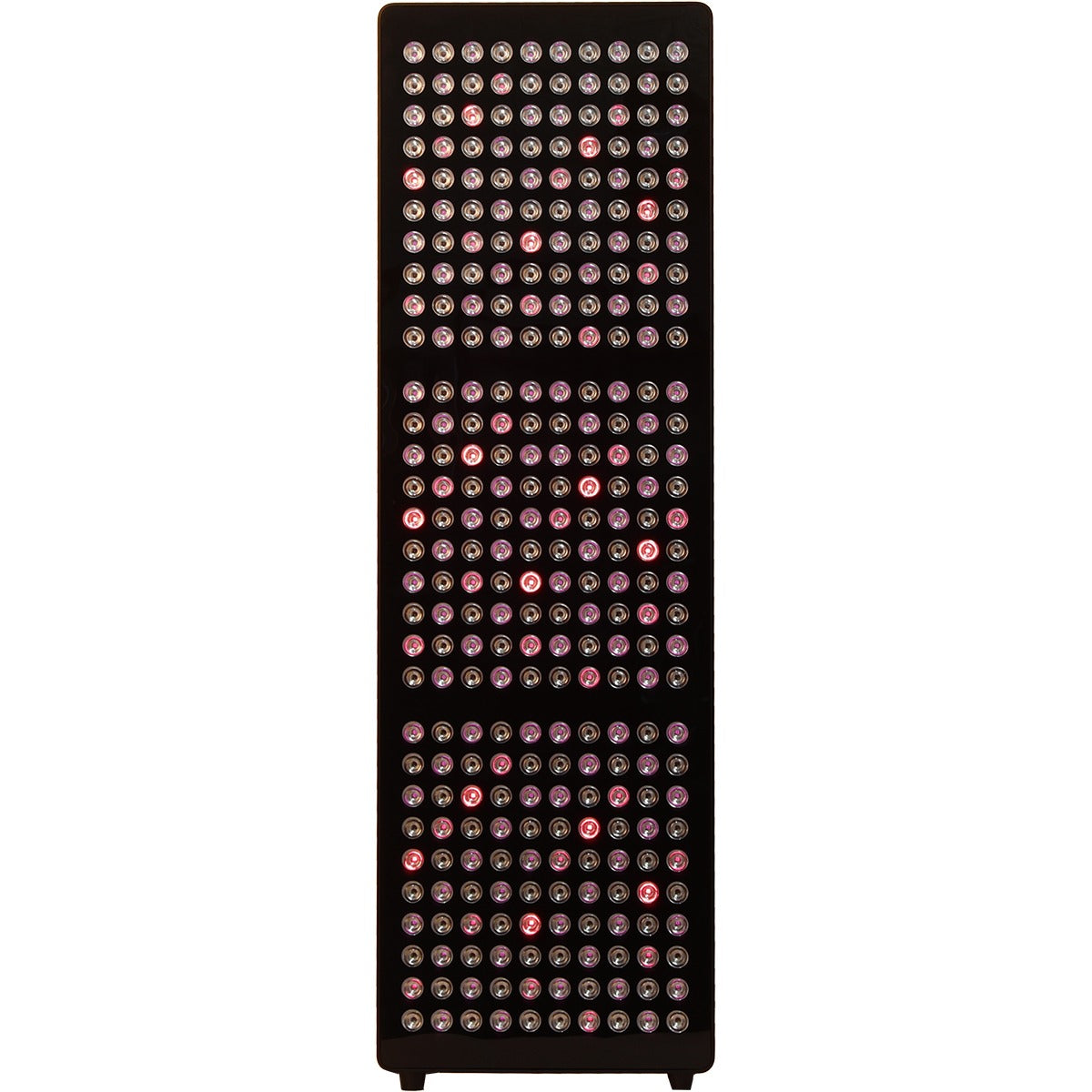

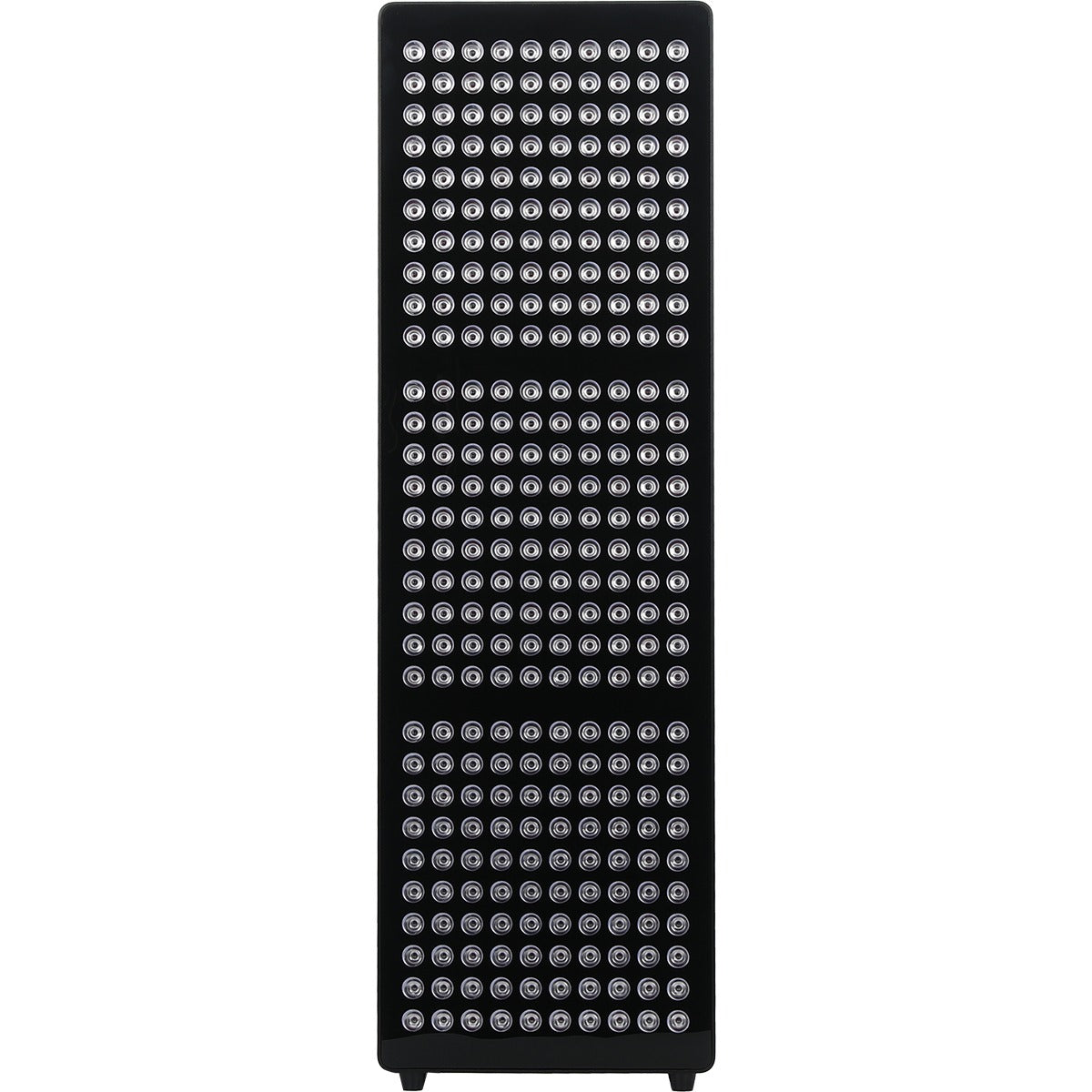

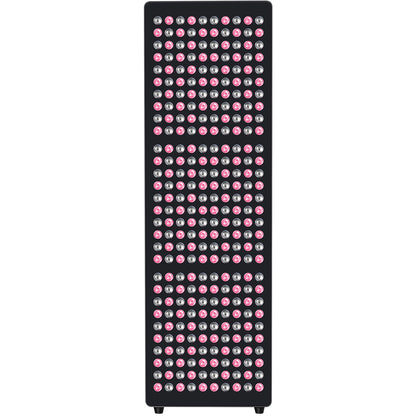

Equipped with 300 premium LEDs protected by an acrylic front panel, the RH1500 delivers broad light coverage while helping protect the LEDs from dust, scratches, and everyday wear. Independent controls for Red and Near-Infrared (NIR) output, adjustable timer, dimming, and pulse modes provide flexible operation to suit a variety of lighting preferences.
Key Features

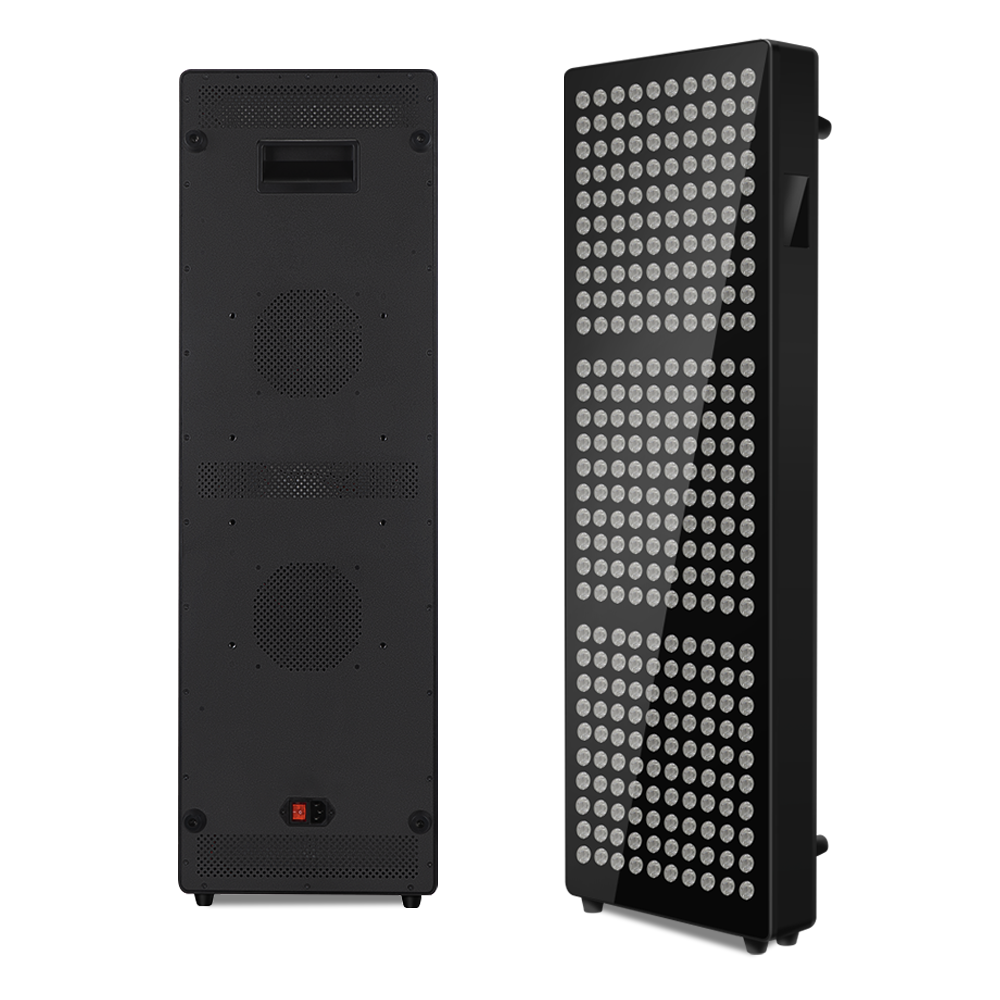

- Heavy-duty aluminum alloy housing for durability and efficient heat dissipation.

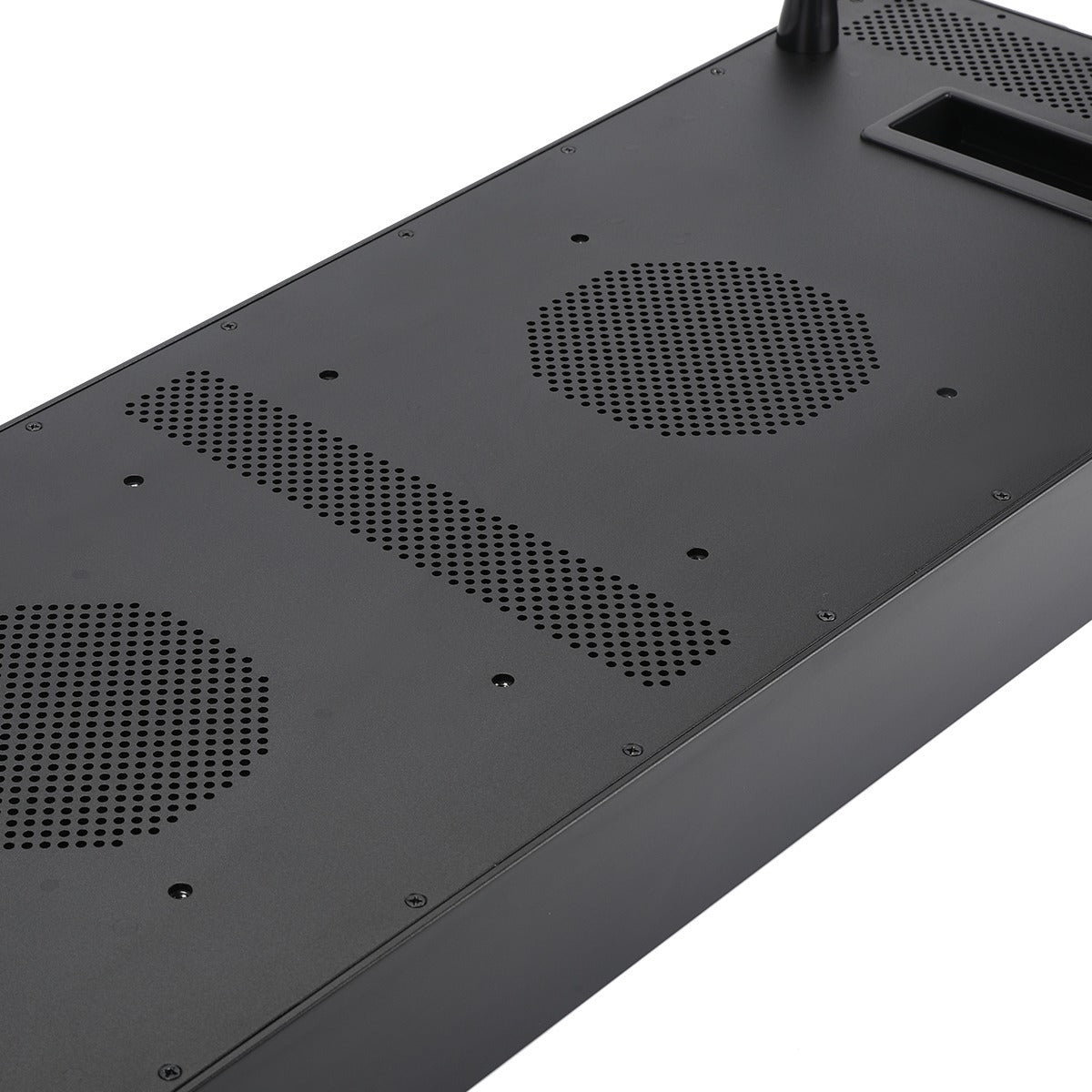

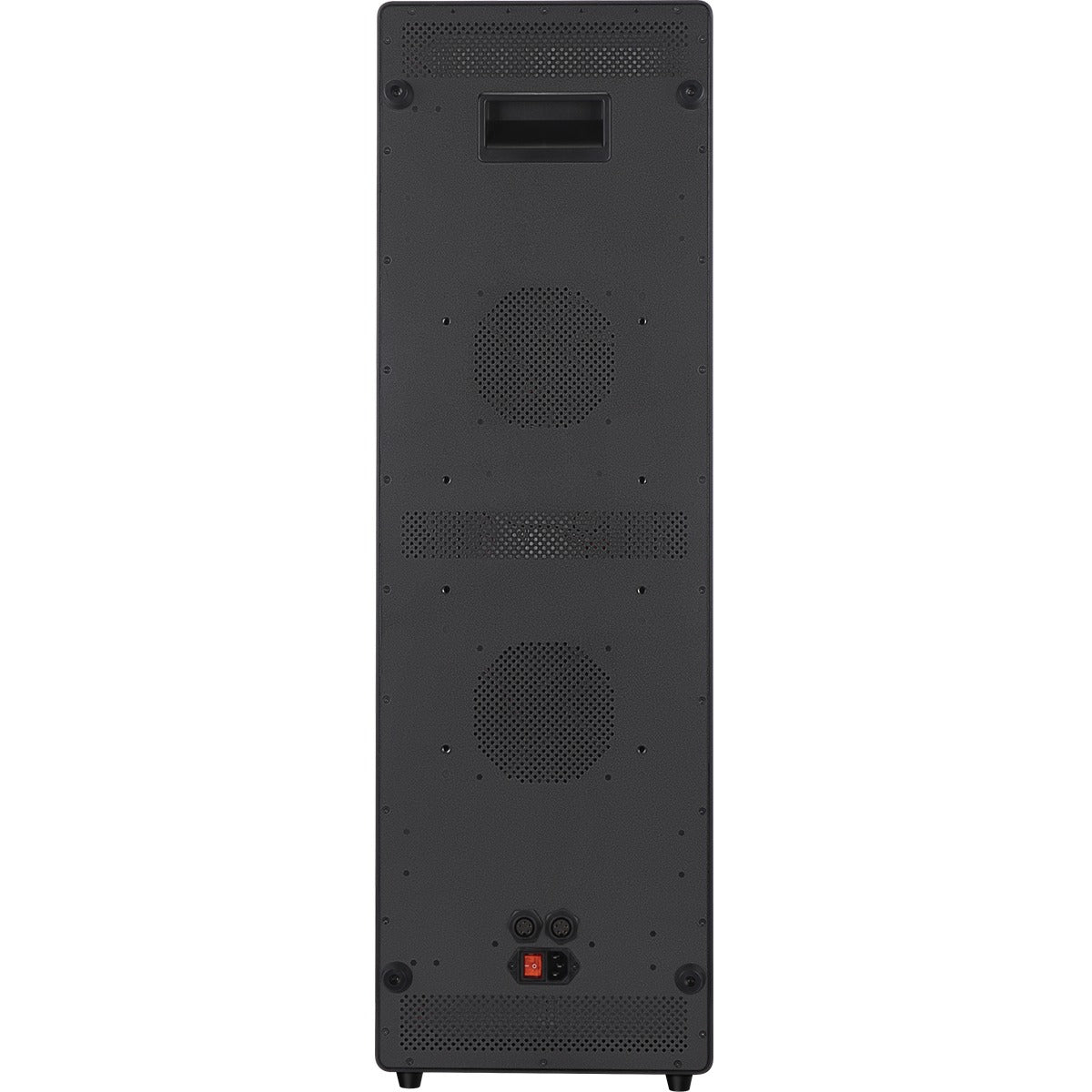

- Patented cooling system designed to promote long-term LED performance.
- Protective acrylic front panel helps shield LEDs from dust and physical damage.
- Modular internal construction for easier maintenance and servicing.
- 300 premium LED chips with gold wire connections and copper holders for enhanced stability.
- Available in either 5-waveband or 7-waveband LED configurations.
- Independent adjustment of Red and Near-Infrared (NIR) light output.
- Touch key controls or optional Intelligent HD color touchscreen.
- Wireless multi-panel synchronization available on touchscreen models.
- Flicker-free operation for consistent light output.
Specifications
| Model | RH1500 |
|---|---|
| Frame Material | Aluminum Alloy |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Rated Power | 1500W |
| Power Consumption | 390W |
| Dimensions | 880 × 276 × 71 mm (34.6 × 10.87 × 2.79 in) |
| Weight | 11.8 kg (26 lb) |
| LED Quantity | 300 LEDs |
| Lens Beam Angle | 30° |

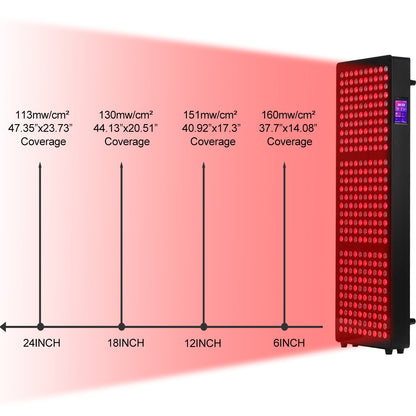

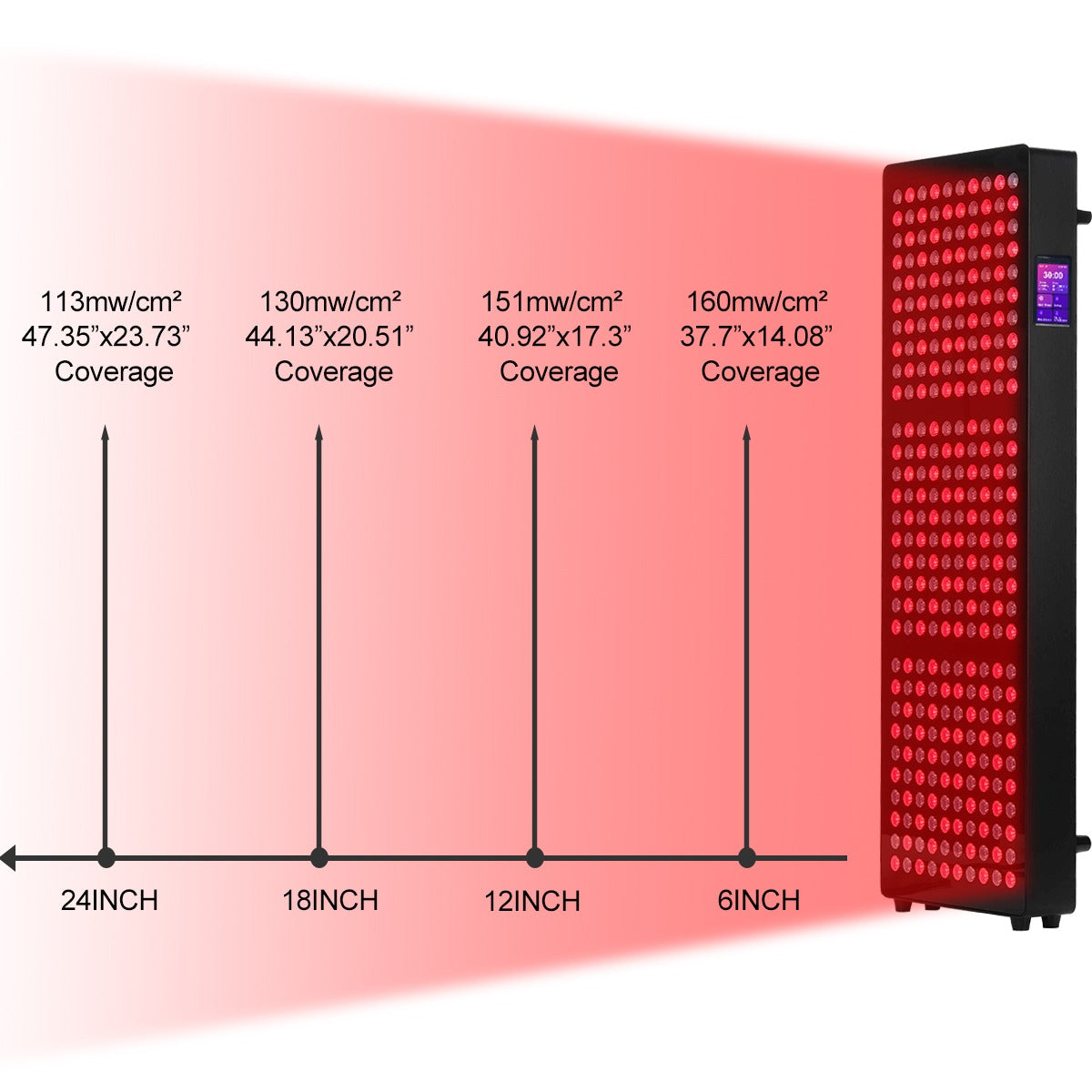

| Irradiance |
160 mW/cm² @ 6" 151 mW/cm² @ 12" 130 mW/cm² @ 18" 113 mW/cm² @ 24" |
| EMF | 0 μT @ 2" |
| Operation | Flicker-Free |
| Expected LED Lifespan | Up to 100,000 hours |
| Warranty | 3-Year Limited Warranty |
| Timer | 5, 10, 15, 20, 25, 30 minutes or adjustable 0–30 minutes (independent Red & NIR control) |
| Dimmer | 20%, 40%, 60%, 80%, 100% or adjustable 0–100% (independent Red & NIR control) |
| Pulse Mode | 10, 40, 73, 146, 293, 587 Hz or adjustable 0–10,000 Hz (independent Red & NIR control) |
| Control Options | Touch key controls or optional Intelligent HD color touchscreen with wireless multi-panel control |
Available LED Waveband Configurations
5-Waveband Configuration
630nm • 660nm • 810nm • 830nm • 850nm
LED Distribution:
- 630nm × 30
- 660nm × 120
- 810nm × 15
- 830nm × 30
- 850nm × 105
7-Waveband Configuration
480nm • 630nm • 660nm • 810nm • 830nm • 850nm • 940nm
LED Distribution:
- 480nm × 6
- 630nm × 30
- 660nm × 114
- 810nm × 15
- 830nm × 30
- 850nm × 96
- 940nm × 9
Package Includes
- RH1500 Red Light Panel
- Integrated control system
- User documentation
Ideal Applications
The RH1500 is designed for users seeking expanded light coverage for personal wellness spaces, fitness studios, spas, recovery rooms, clinics, and other professional environments. Its larger panel size makes it suitable for covering multiple treatment areas in a single session.
Additional Information
This product is intended to emit red and near-infrared light and is not intended to diagnose, treat, cure, or prevent any disease. Always operate the panel according to the manufacturer's instructions. Product specifications may change without prior notice.
