Product Overview

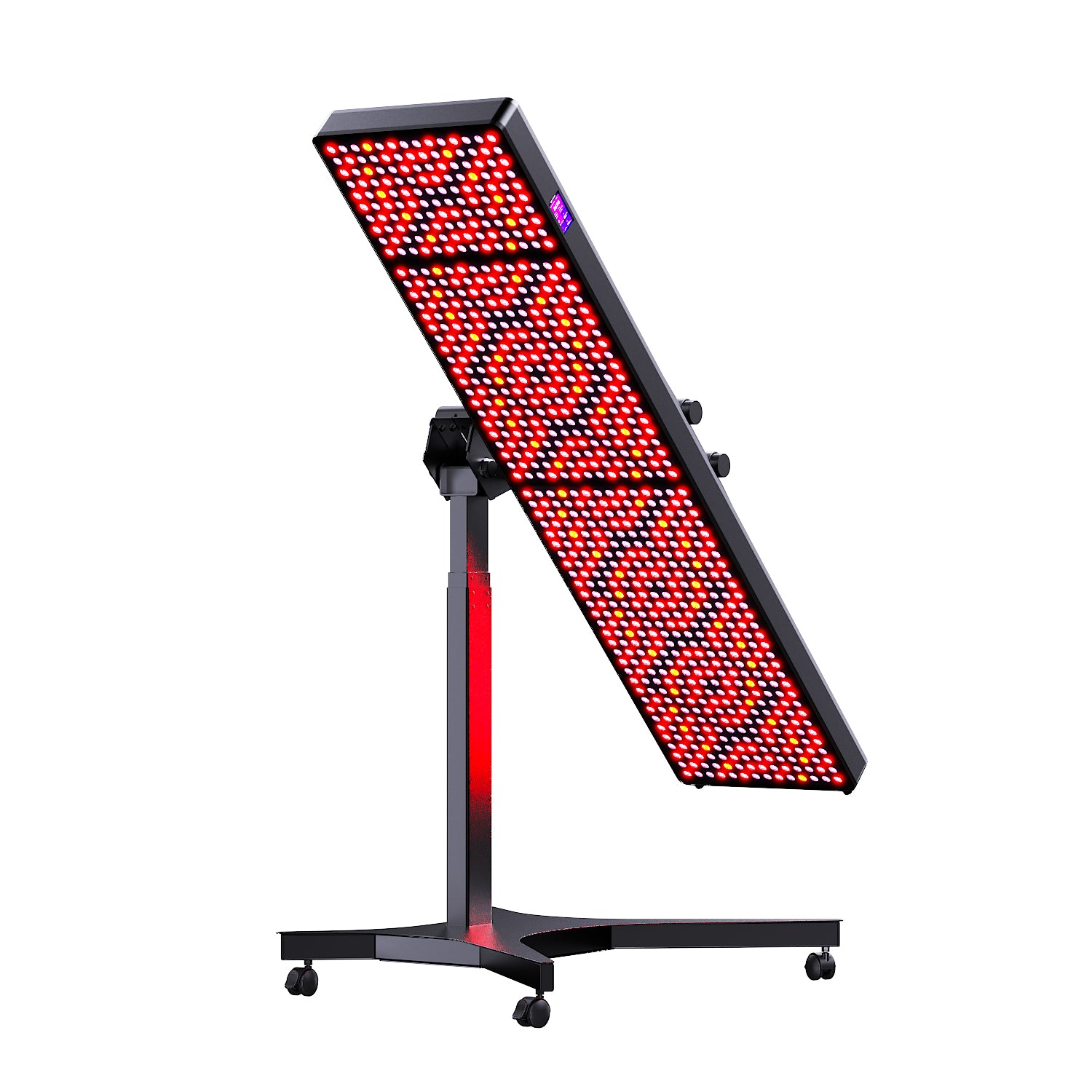

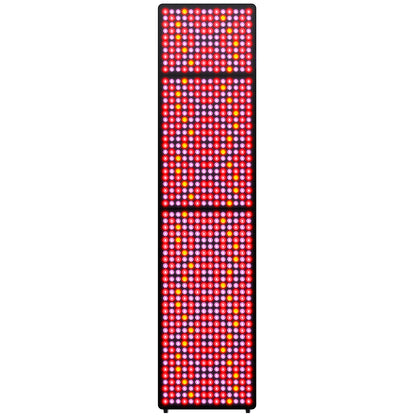

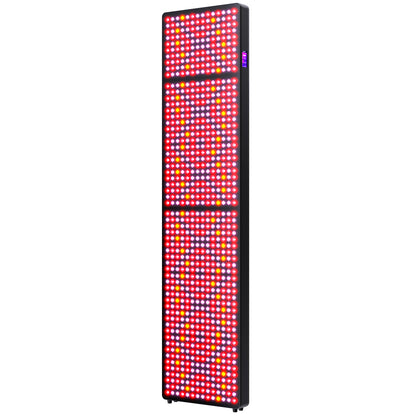

The RH Full Body Red Light Panel is the largest model in the RH Series, engineered to provide extensive full-body light coverage for home, wellness, fitness, spa, recovery, and professional environments. Constructed with a premium aluminum alloy frame, a patented heat dissipation system, and a modular internal design, this panel is built for dependable performance, efficient cooling, and simplified maintenance.

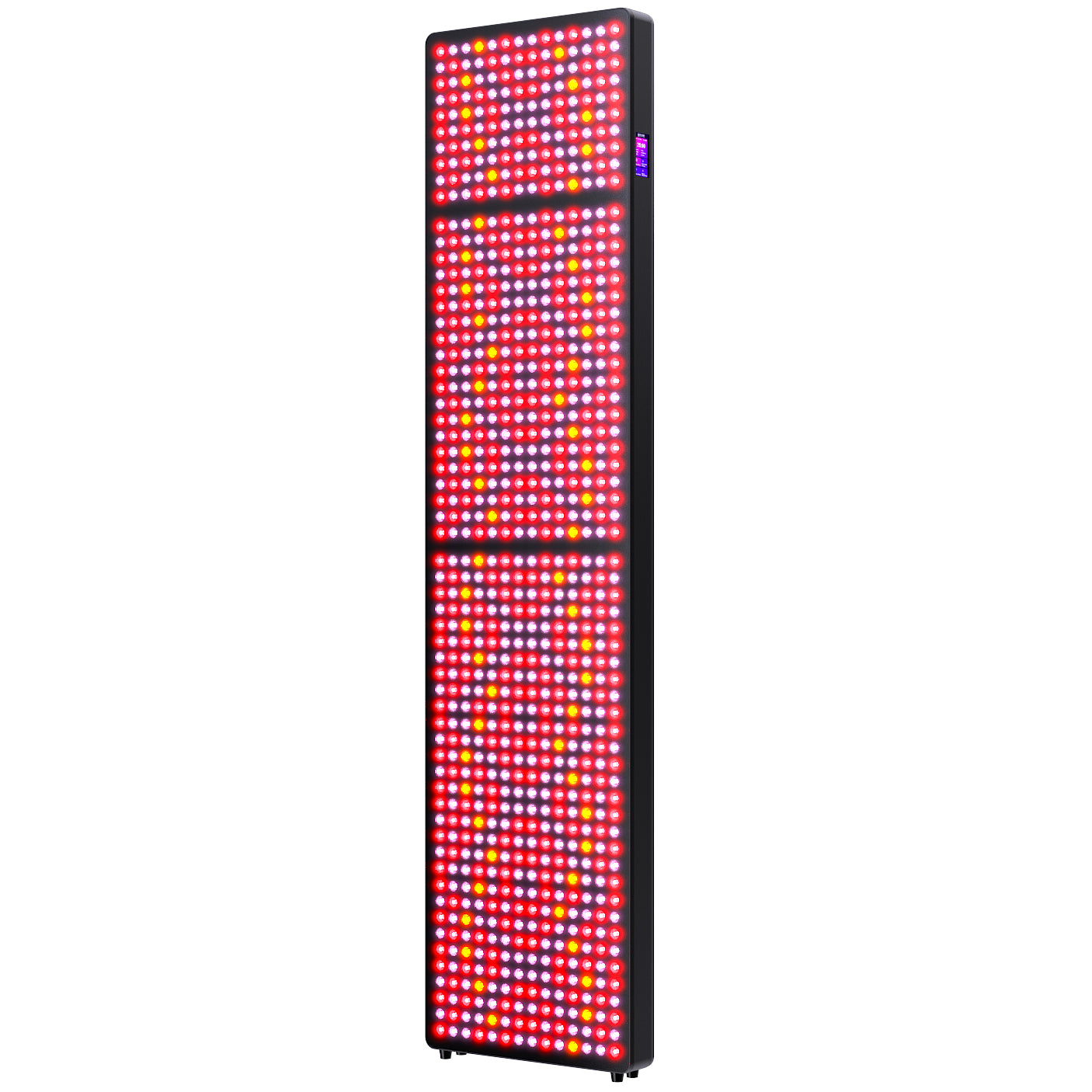

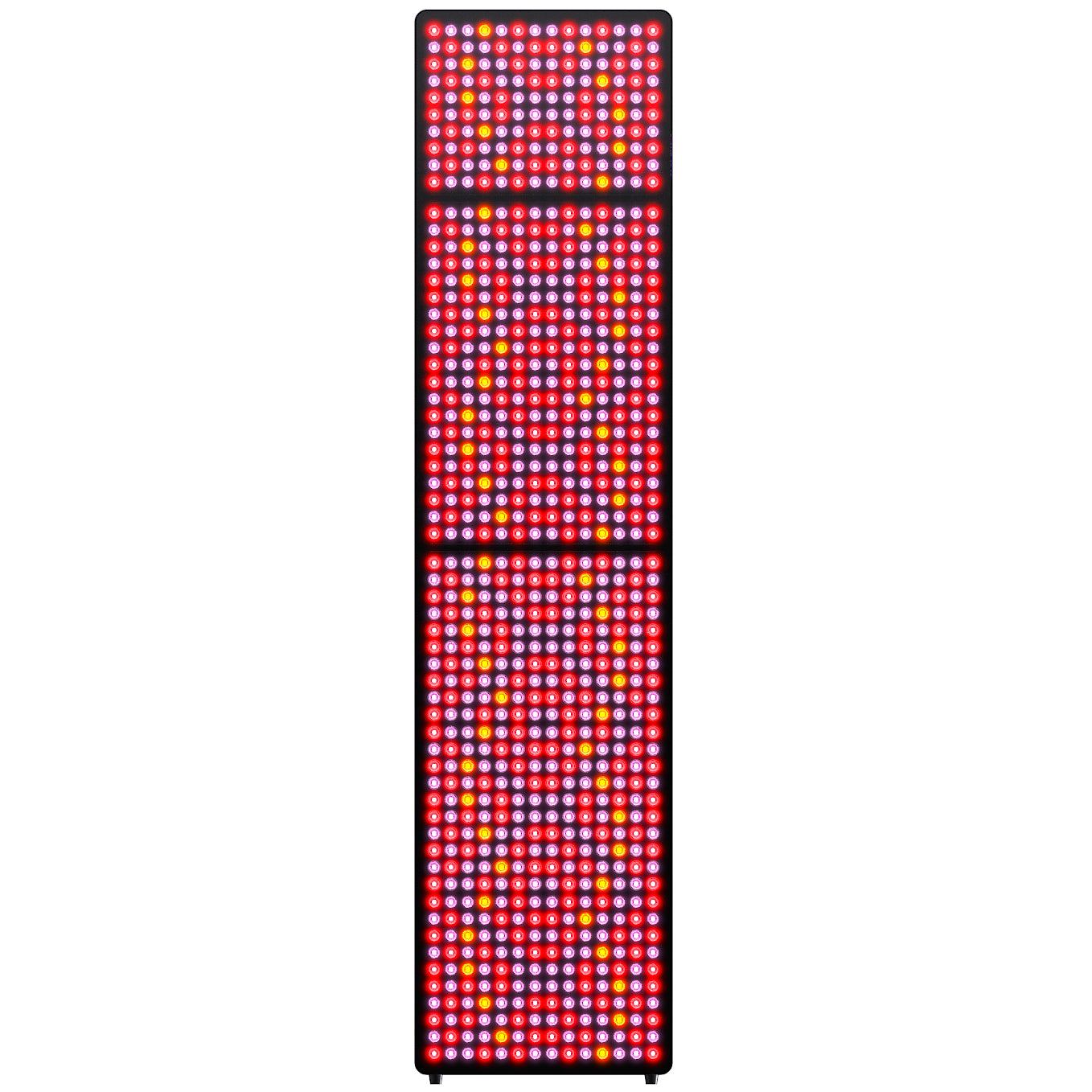

Equipped with 840 premium LEDs protected by a durable acrylic front panel, the RH Full Body panel delivers broad, uniform illumination while helping protect the LEDs from dust, scratches, and everyday wear. Independent controls for Red and Near-Infrared (NIR) output, adjustable timer, dimming, and pulse settings offer flexible operation for a wide range of lighting preferences.
Key Features
- Large-format panel designed for extensive full-body light coverage.
- Premium aluminum alloy housing with excellent heat dissipation.

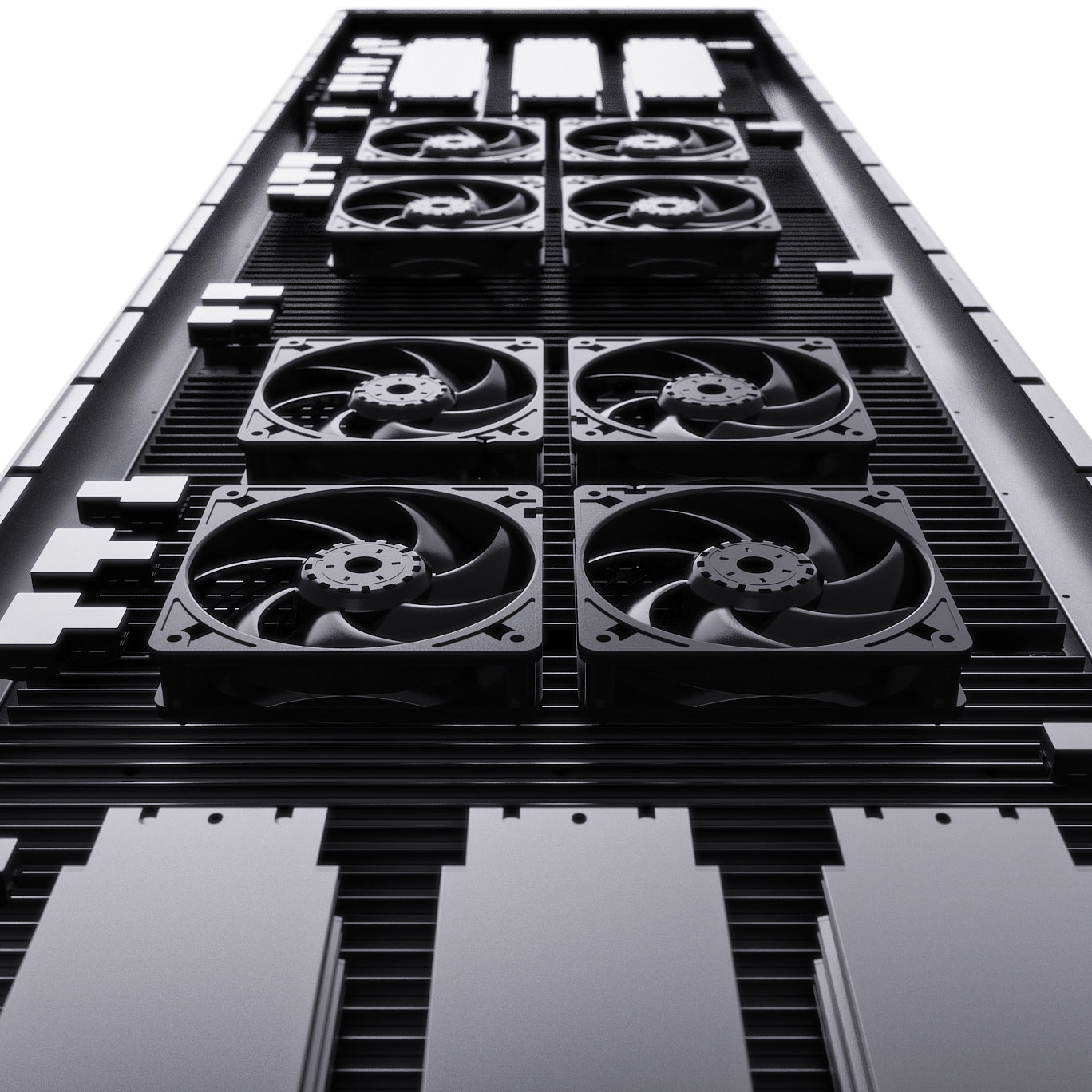

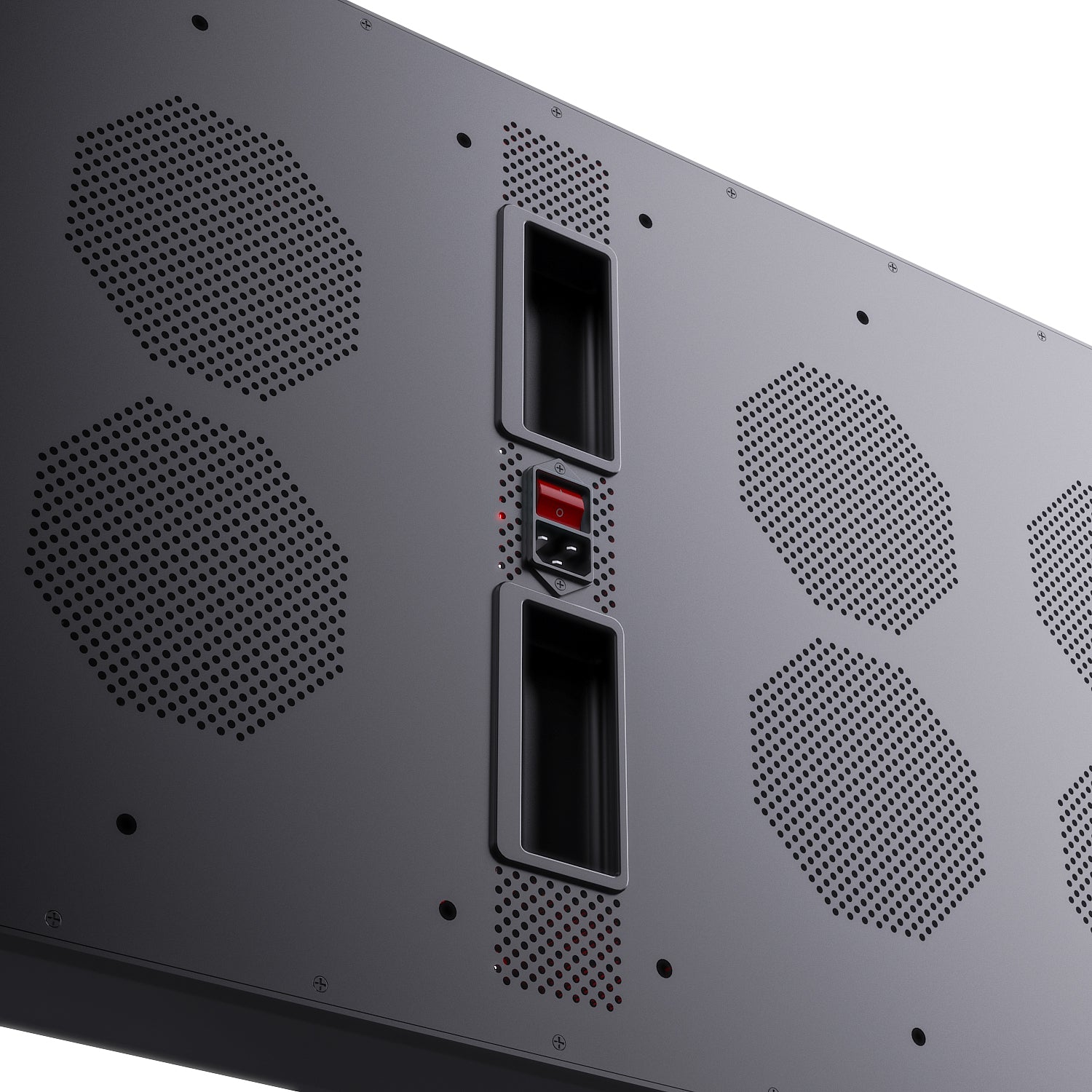

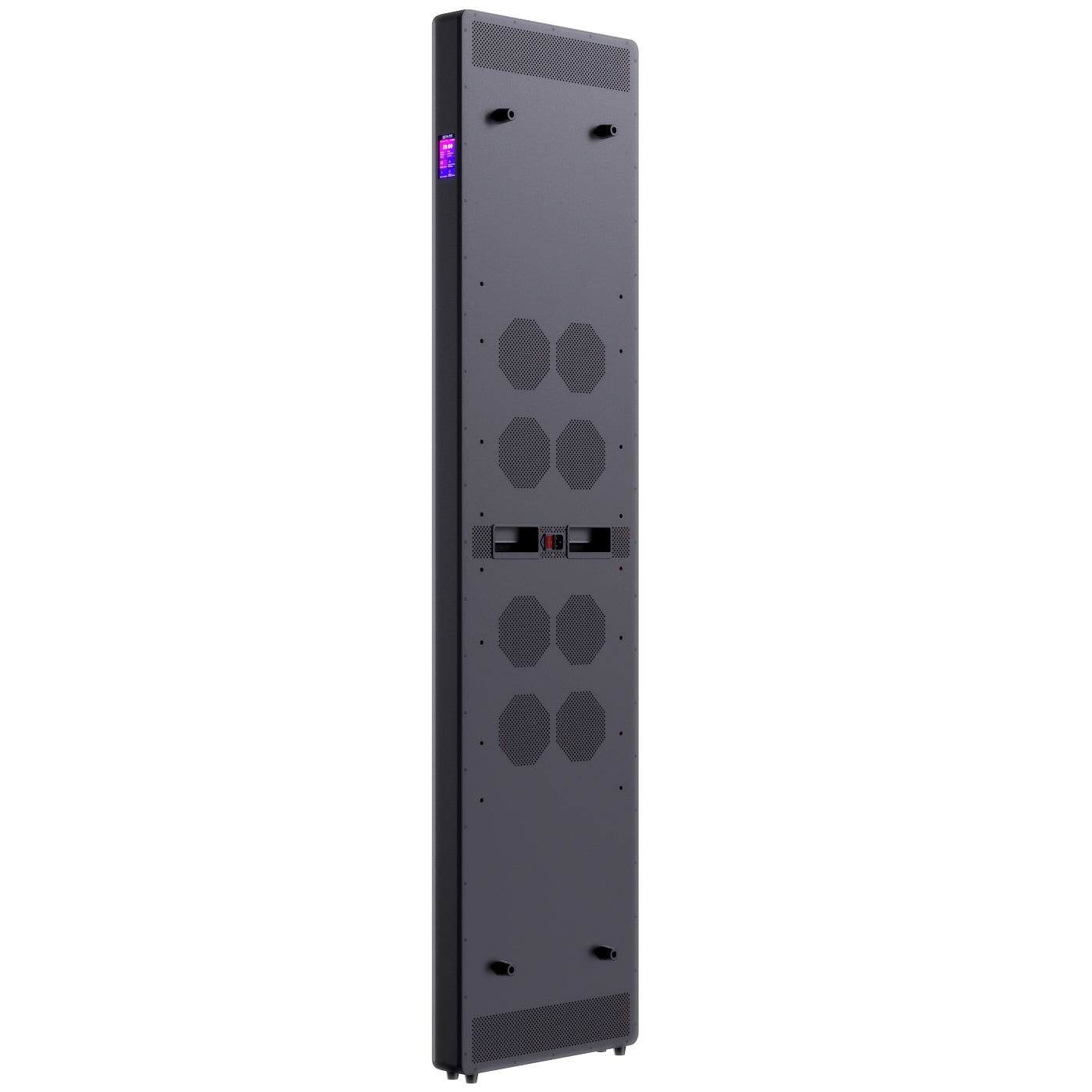

- Patented cooling system helps maintain consistent operating temperatures.
- Protective acrylic front panel helps shield LEDs from dust, scratches, and damage.
- Modular internal construction allows for easier servicing and maintenance.

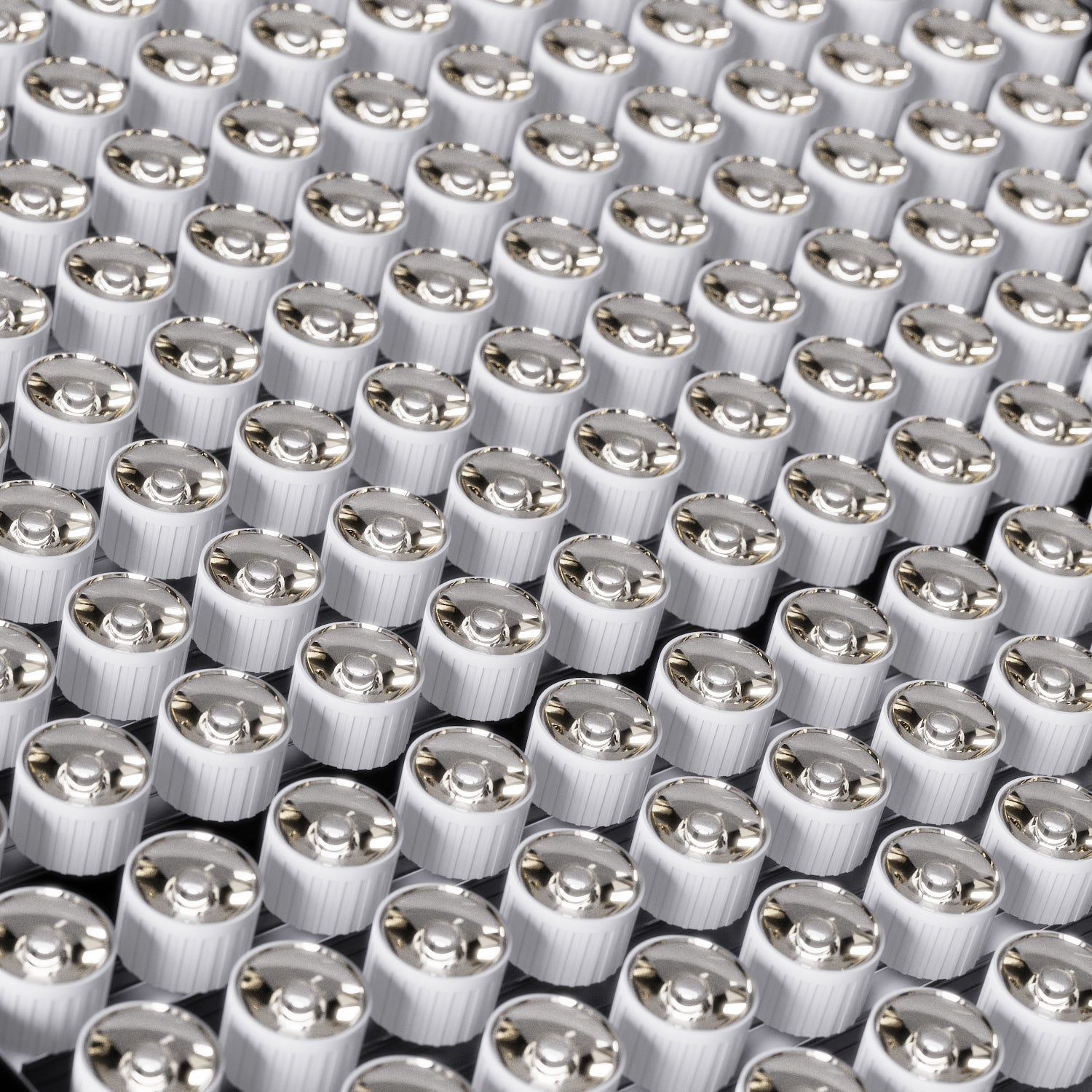

- 840 premium LED chips with gold wire connections and copper holders for enhanced durability.
- Available in 5-waveband or 7-waveband LED configurations.
- Independent control of Red and Near-Infrared (NIR) light output.

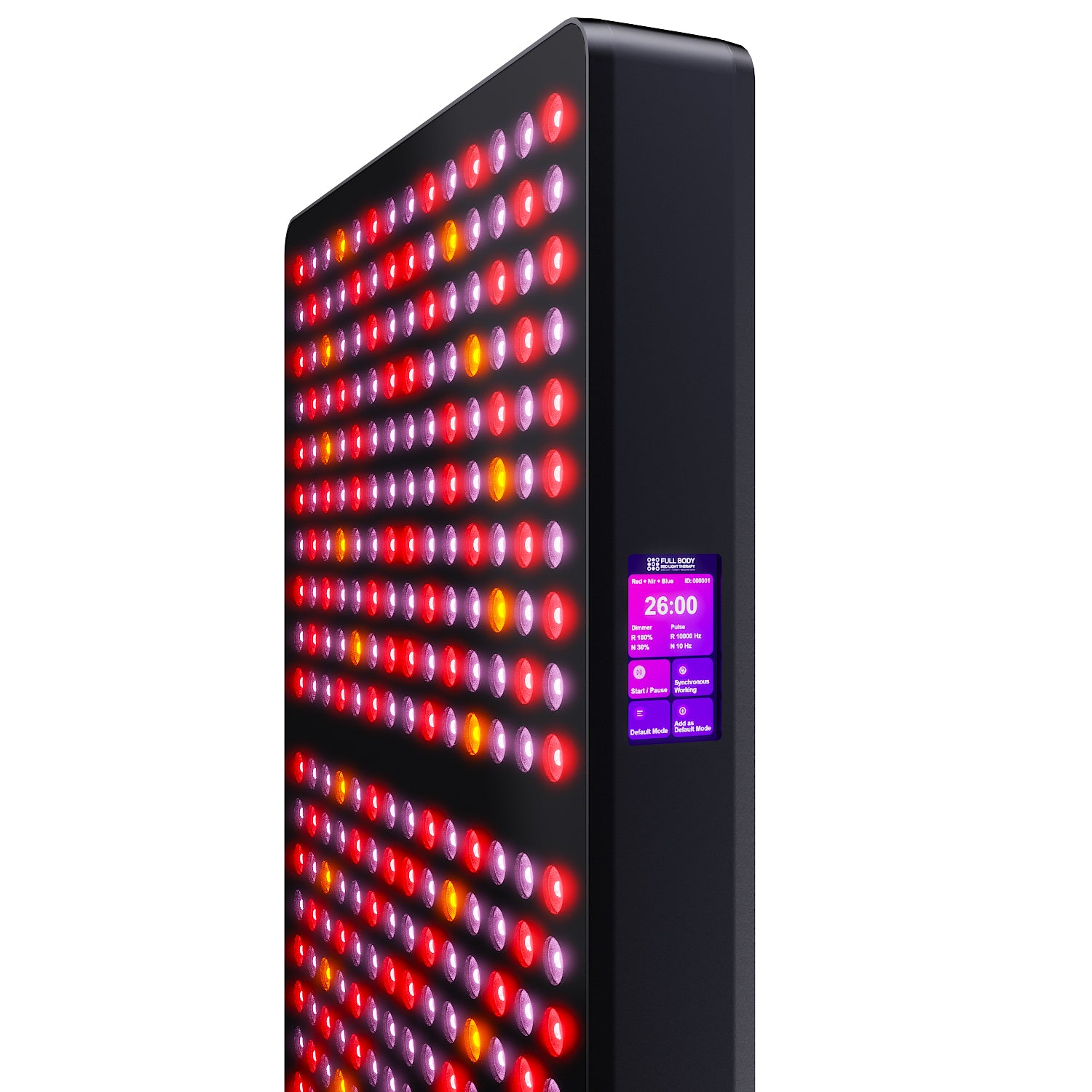

- Touch key controls or optional Intelligent HD color touchscreen.
- Wireless synchronization capability for multiple compatible panels.
- Flicker-free operation.
Specifications
| Model | RH Full Body |
|---|---|
| Frame Material | Aluminum Alloy |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Rated Power | 4200W |
| Power Consumption | 1092W |
| Dimensions | 1717 × 415 × 71 mm (67.6 × 16.3 × 2.79 in) |
| Weight | 37 kg (81.6 lb) |
| LED Quantity | 840 LEDs |
| Lens Beam Angle | 30° |

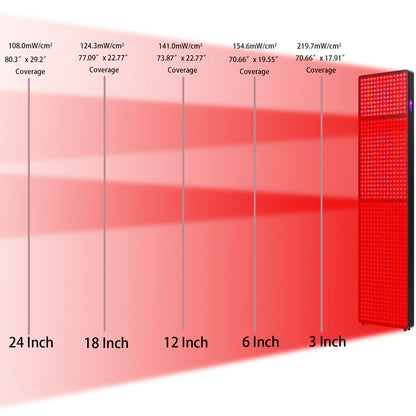

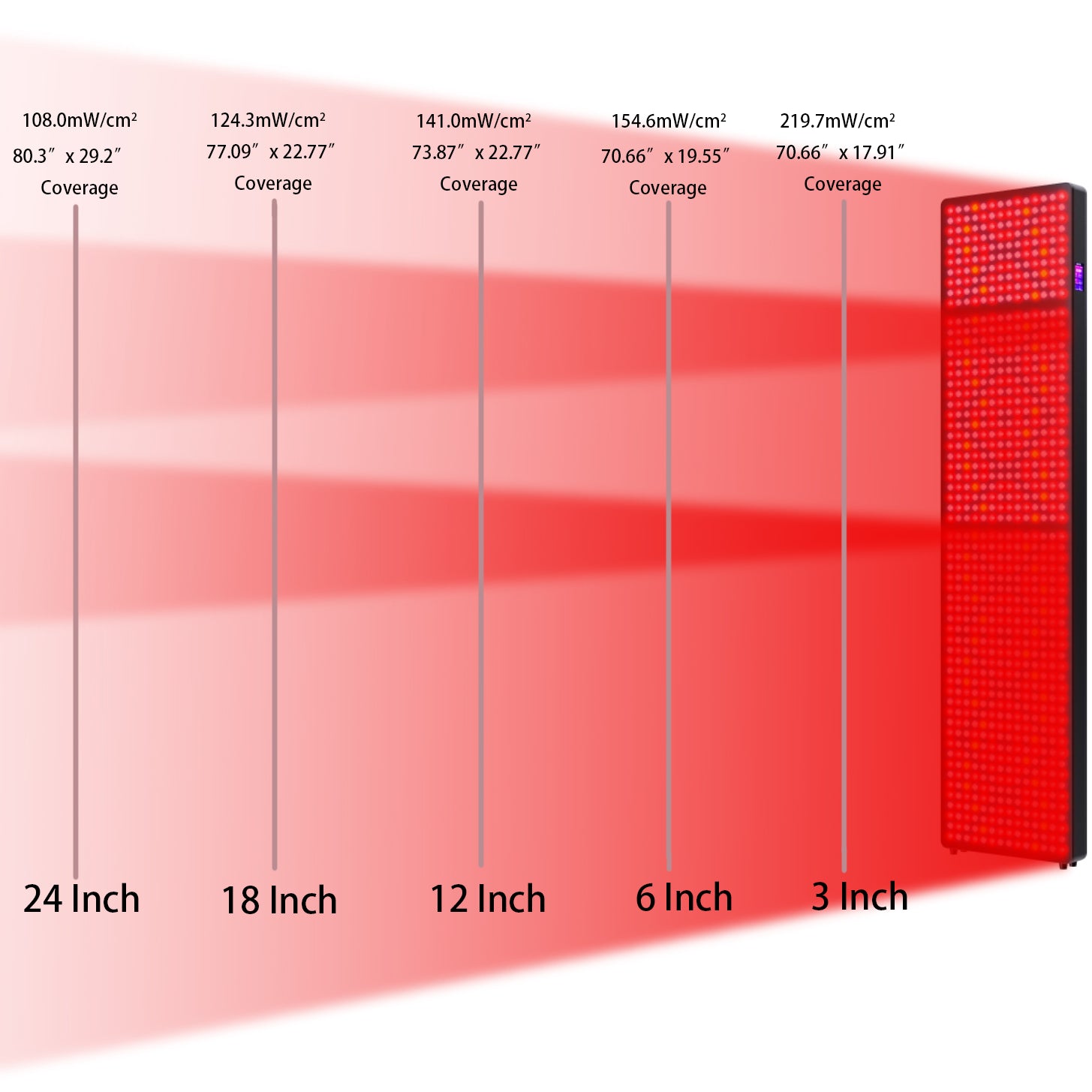

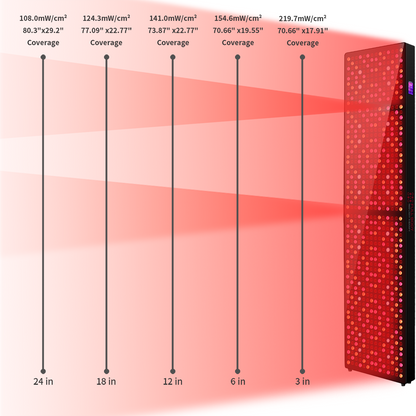

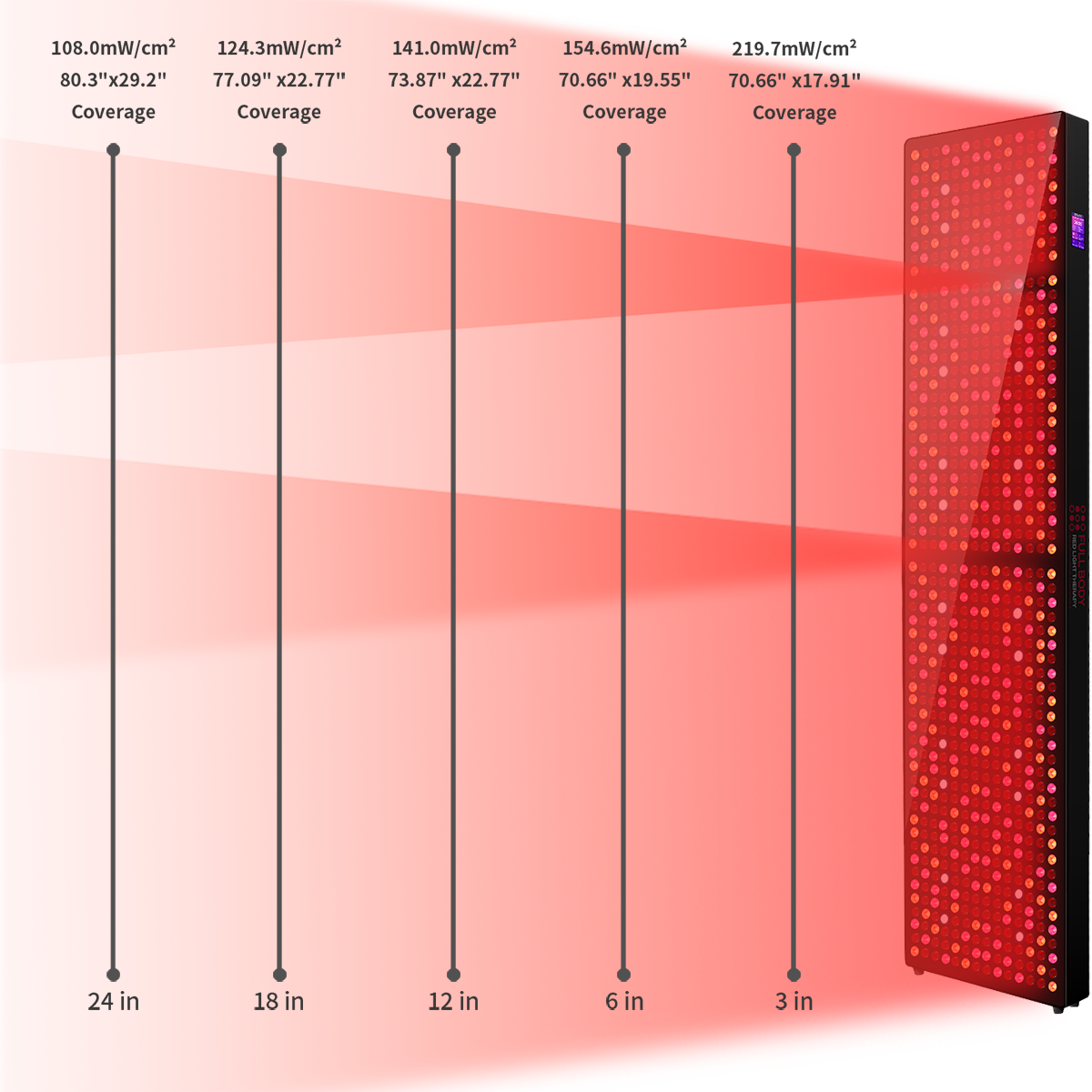

| Irradiance |
154 mW/cm² @ 6" 141 mW/cm² @ 12" 124 mW/cm² @ 18" 108 mW/cm² @ 24" |
| EMF | 0 μT @ 3" |
| Operation | Flicker-Free |
| Expected LED Lifespan | Up to 100,000 hours |
| Warranty | 3-Year Limited Warranty |
| Timer | 5, 10, 15, 20, 25, 30 minutes or adjustable 0–30 minutes (independent Red & NIR control) |
| Dimmer | 20%, 40%, 60%, 80%, 100% or adjustable 0–100% (independent Red & NIR control) |
| Pulse Mode | 10, 40, 73, 146, 293, 587 Hz or adjustable 0–10,000 Hz (independent Red & NIR control) |
| Control Options | Touch key controls or optional Intelligent HD color touchscreen with wireless multi-panel control |
Available LED Waveband Configurations
5-Waveband Configuration
630nm • 660nm • 810nm • 830nm • 850nm
LED Distribution
- 630nm × 84
- 660nm × 336
- 810nm × 48
- 830nm × 36
- 850nm × 336
7-Waveband Configuration
480nm • 630nm • 660nm • 810nm • 830nm • 850nm • 940nm
LED Distribution
- 480nm × 24
- 630nm × 138
- 660nm × 198
- 810nm × 78
- 830nm × 174
- 850nm × 192
- 940nm × 36
Package Includes
- RH Full Body Red Light Panel
- Integrated control system
- User documentation
Ideal Applications

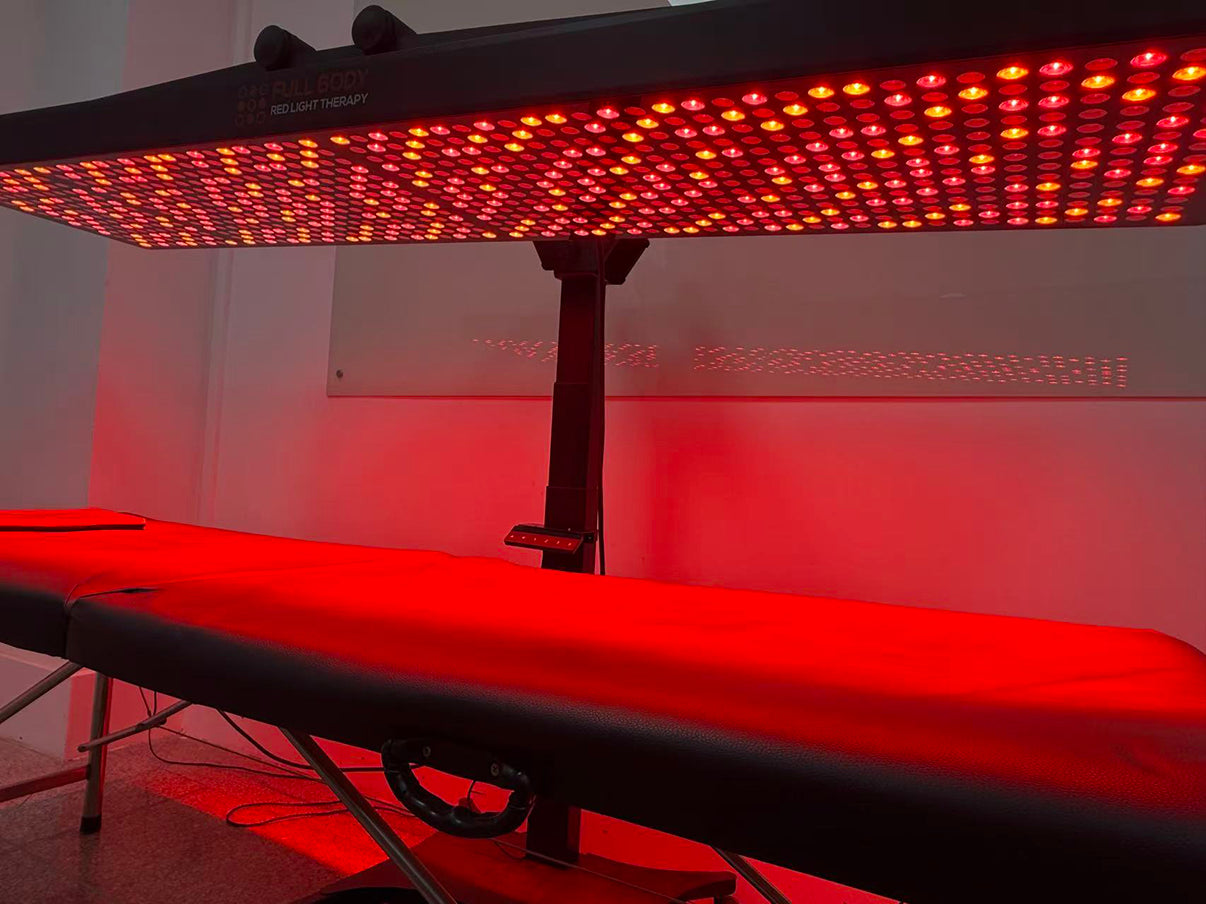

The RH Full Body panel is designed for users who require maximum light coverage in home wellness rooms, fitness facilities, spas, recovery centers, clinics, and other professional settings. Its extra-large format is suitable for full-body illumination while maintaining a compact wall-mounted profile.
Additional Information
This product emits red and near-infrared light and is intended for light therapy applications only. It is not intended to diagnose, treat, cure, or prevent any disease. Always use the panel according to the manufacturer's operating instructions. Product specifications are subject to change without prior notice.
